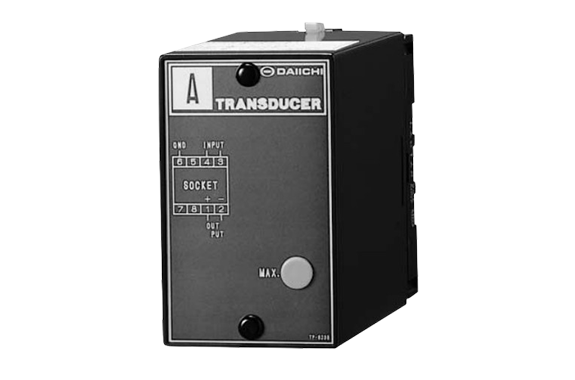

Manufacturer: Daiichi Electronics Co., Ltd.
Model: ATP2-31

Features

• Auxiliary power supply is not required.
• Constant current output type.
• Input, output, and ground are completely isolated with withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Equipped with primary and secondary electrostatic shielding to protect the output-side equipment from input-side surge, etc.
• Impulse withstand voltage is guaranteed for three iterations each for the electrical circuit and between ground: 5 kV, 1.2/50 μs, positive and negative polarity.
• Equipped with surge protection on the output line (2,000 A, 8/20 μs, positive/negative polarity), allowing direct transmission to remote locations.

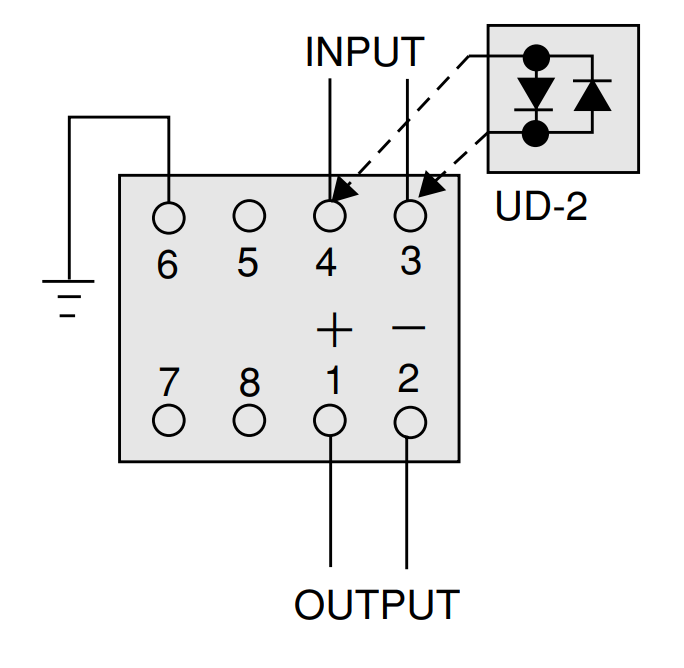

Wiring Diagram
