Manufacturer: Daiichi Electronics Co., Ltd.

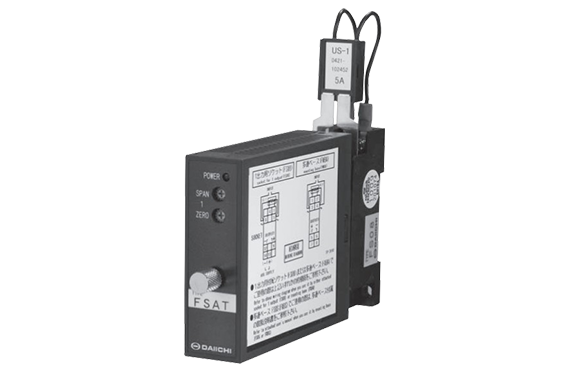

Model: FSAT

Features

• Designed with a compact size and high dielectric strength.
• Complete isolation for 1 minute withstand voltage of AC 2,000 V (50/60 Hz) between input, output, auxiliary power, and outer case.
• Constant voltage and constant current output type, so no adjustment is required when used within the rated load resistance range.
• Power application status can be confirmed with an LED.
• Zero and span adjustments are possible. (±2% adjustable)
• Because it uses true RMS calculation, it can also be used for distorted waveforms and SCR waveforms.
• In live line conditions, removing the unit from the socket will not cause the current transformer (CT) to open.

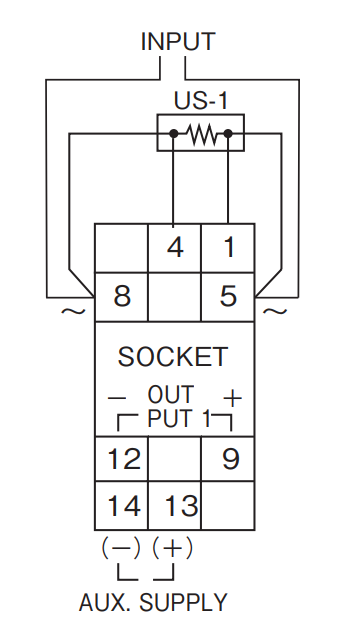

Wiring Diagram
