Manufacturer: Daiichi Electronics Co., Ltd.

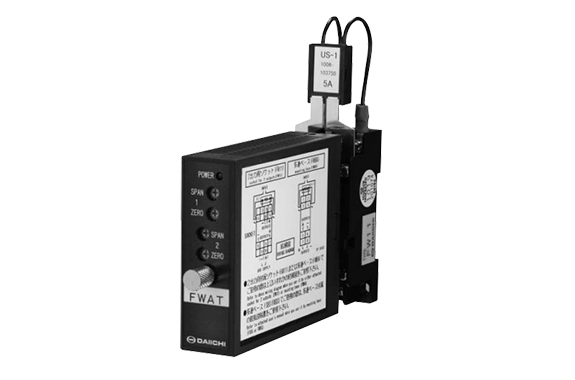

Model: FWAT

Features

• Dielectric Strength:
  Input/output, auxiliary power, and enclosure: AC 2,000 V (50/60 Hz), 1 minute
  Between output channels: AC 500 V (50/60 Hz), 1 minute
  Output Type: Constant voltage/current; no adjustment needed within rated load resistance range.
• Indicators & Adjustments:
  LED confirms power-on status
  Independent zero and span adjustment for outputs 1 & 2 (±2% range)
• Functionality:
  True RMS compatible with distorted and SCR waveforms
  Safe to remove from socket during live operation—CT remains closed

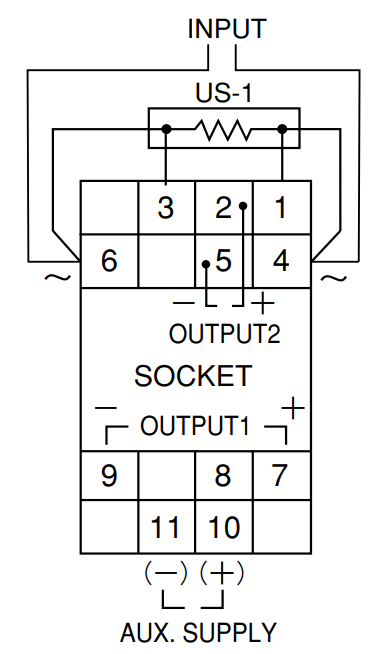

Wiring Diagram
