Manufacturer: Daiichi Electronics Co., Ltd.

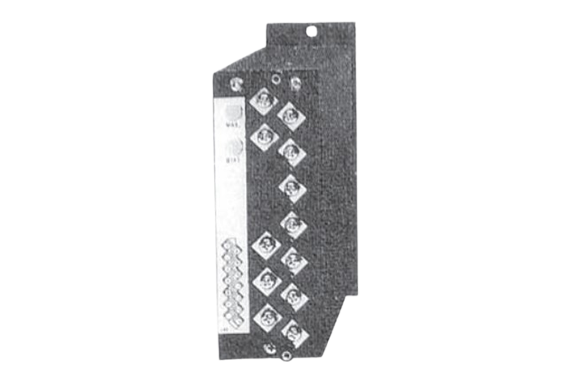

Model: WRCB-11A-33

Features

• This unit is a slim BOX-type, rear panel-mounted transducer.
• Designed for high reliability and ±0.3% high accuracy.
• Withstands AC 2000V for 1 minute between input, output, auxiliary power, and earth.
• Equipped with electrostatic shielding to protect output devices from lightning surges and similar disturbances.
• Equipped with output line surge protection, allowing direct output transmission to remote locations.
• The auxiliary power supply provides constant voltage and constant current output.
• Operates normally from 0V input for both active and reactive power. SCR waveforms are also supported.

External Dimensions Drawing (Unit : mm)
