Manufacturer: Daiichi Electronics Co., Ltd.

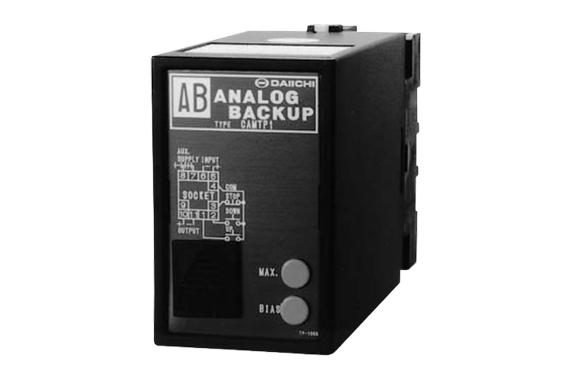

Model: CAMTP1-C7H1

Features

• Constant voltage and constant current output. A selectable switch for DC 4–20 mA / DC 1–5 V output can be included.
• Withstand voltage:
  2,000 V AC (50/60 Hz) for 1 minute between the entire circuit and enclosure.
  1,500 V AC (50/60 Hz) for 1 minute between input/output and auxiliary power.
• The programming unit (CCM-1) allows changes to output hold settings during auxiliary power outage and modification of input/output response times. It also enables simulated output for loop testing.
• The settings in the programming unit (CCM-1) are stored in non-volatile memory, so reconfiguration is not needed even after a power outage.
• Manual UP and DOWN operation is possible via external control input.

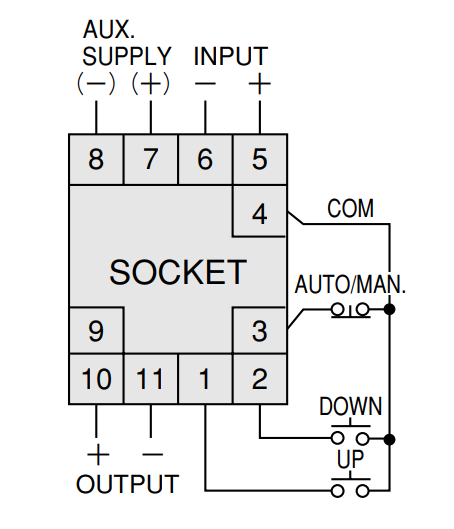

Wiring Diagram
