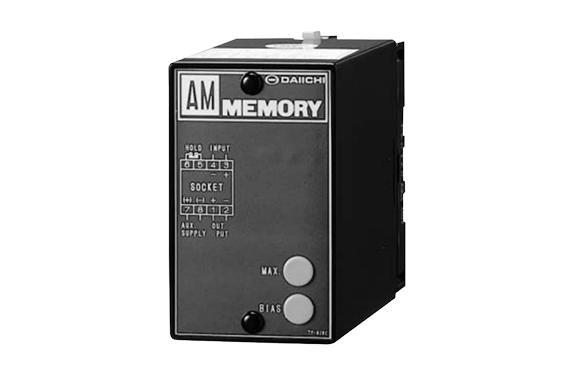

Manufacturer: Daiichi Electronics Co., Ltd.
Model: AMTP-C7F5

Features

• Constant voltage and constant current output.
• Withstand voltage: 2,000 V AC (50, 60 Hz) for 1 minute between the entire electrical circuit and the enclosure.
  Also, 1,500 V AC (50, 60 Hz) for 1 minute between input/output and the auxiliary power supply.
  There is no insulation between input and output.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations between the electrical circuit and the enclosure.

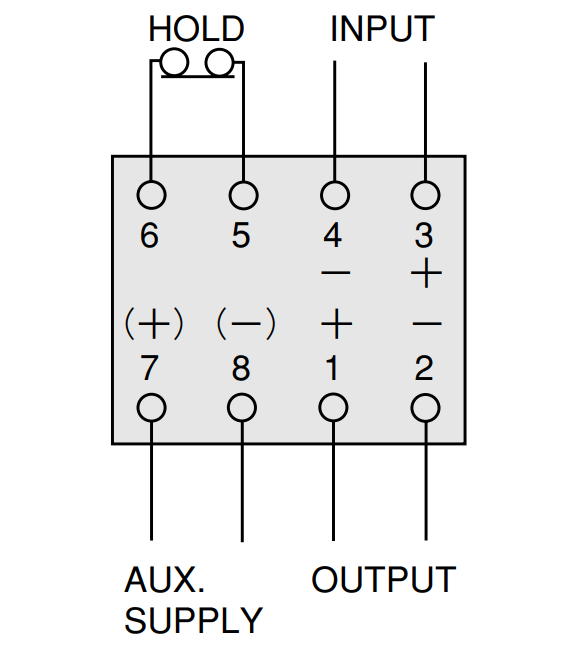

Wiring Diagram

Note: The polarity inside the parentheses applies when using a DC auxiliary power supply.
