Manufacturer: Daiichi Electronics Co., Ltd.

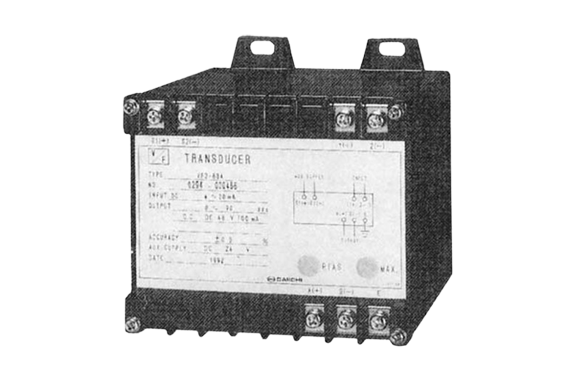

Model: VF2-83A

Features

• It supports either open collector output or voltage output as the output signal method.
• It satisfies a withstand voltage of AC 2,000V (between input, output, auxiliary power, and earth).
• Impulse withstand voltage of 5kV 1.2/50 μs with both positive and negative polarity is guaranteed for each of 3 times (between electric circuits and earth).

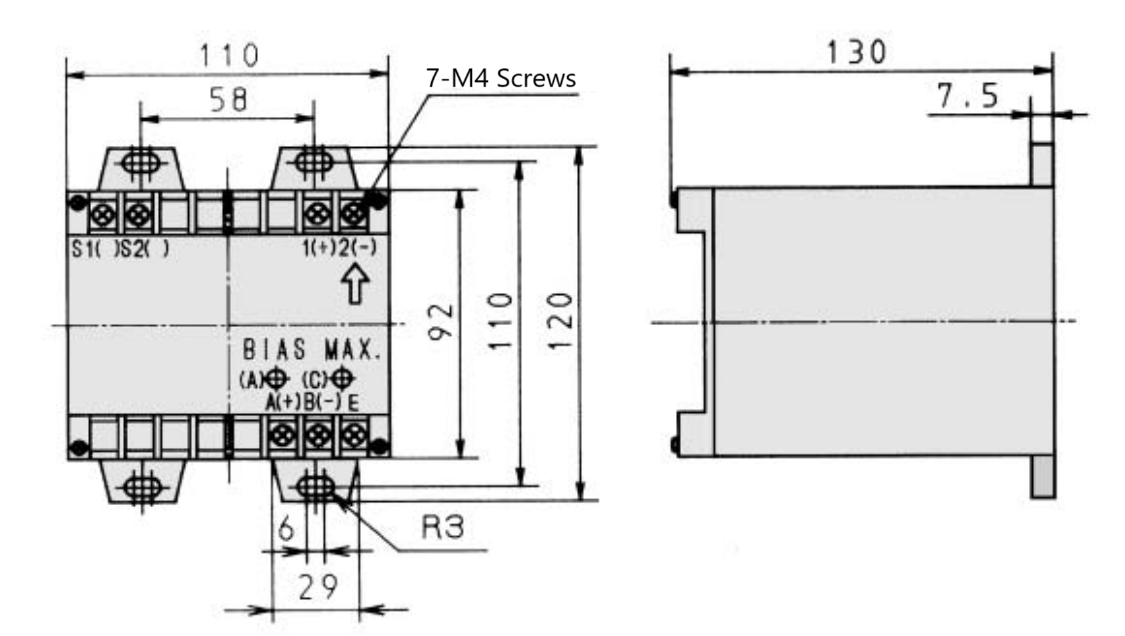

External Dimention
