Manufacturer: Daiichi Electronics Co., Ltd.

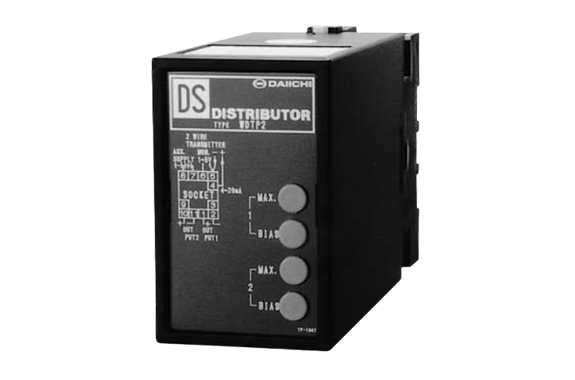

Model: WDTP2-C7H51

Features

• This is a distributor for 2-wire transmitters, equipped with distributor and signal switching functions.
• Includes short-circuit protection for the transmitter circuit (30 mA or less).
• Provides stable power supply to 2-wire transmitters.
• Withstand voltage between output 1 and output 2: AC 1,000 V.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between the electrical circuit and enclosure).
• The DC 4–20 mA signal from the transmitter can be monitored as DC 1–5 V (±0.1%) via terminals 5 and 6 on the main unit.

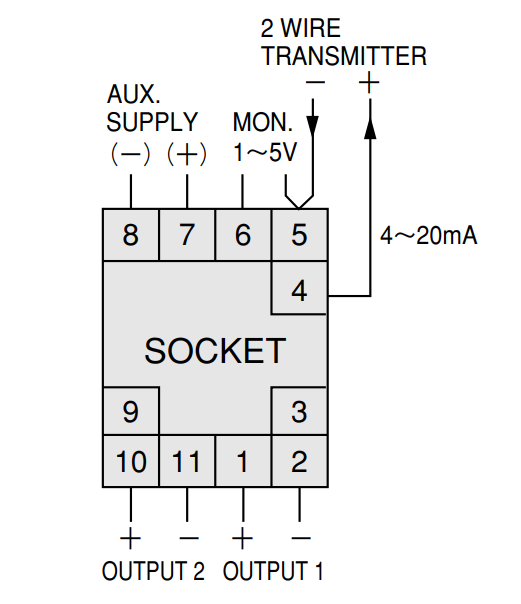

Wiring Diagram
