Manufacturer: Daiichi Electronics Co., Ltd.

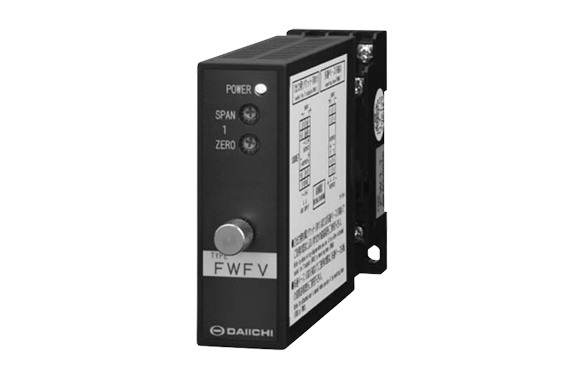

Model: FWFV

Features

• Sine wave input or pulse input can be specified.
• High-speed detection is supported. (40 ms or less when combined with monitoring relay FWMR)
• Dielectric strength between input, output, auxiliary power supply, and enclosure: AC 2000 V (50/60 Hz) for 1 minute.
• Analog output and open-collector output are mutually insulated. Dielectric strength: AC 500 V (50/60 Hz) for 1 minute.
• Power-on status can be confirmed via LED. (LED color: green)
• Socket is included as standard. (For multi-base use, please specify if no socket is required)
• Socket name: FW11

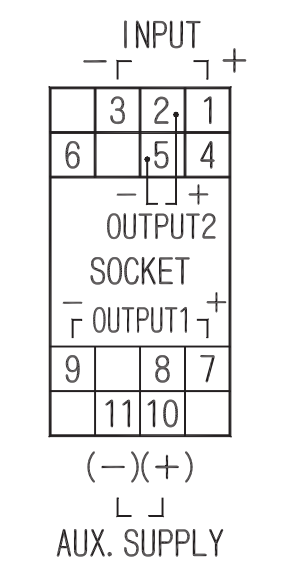

Wiring Diagram
