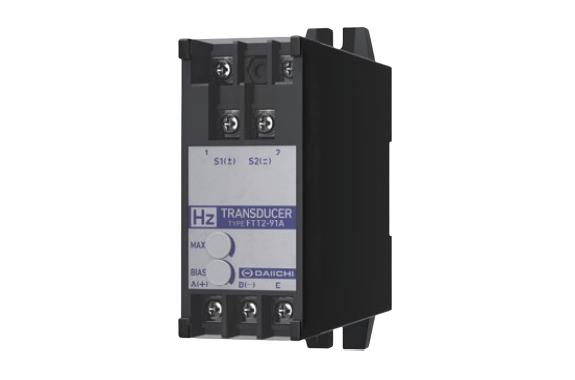

Manufacturer: Daiichi Electronics Co., Ltd.
Model: FTT2-91A

Features

• Complies with JIS C 1111:2019 and IEC 60688:2012.
• Supports both AC and DC (80–264V) with a free power supply design. Also offers DC 24V/48V shared models.
• Achieves approximately 50% reduction in power consumption and weight compared to our previous models.
• IEC/DIN rail mounting and wall mounting are supported.

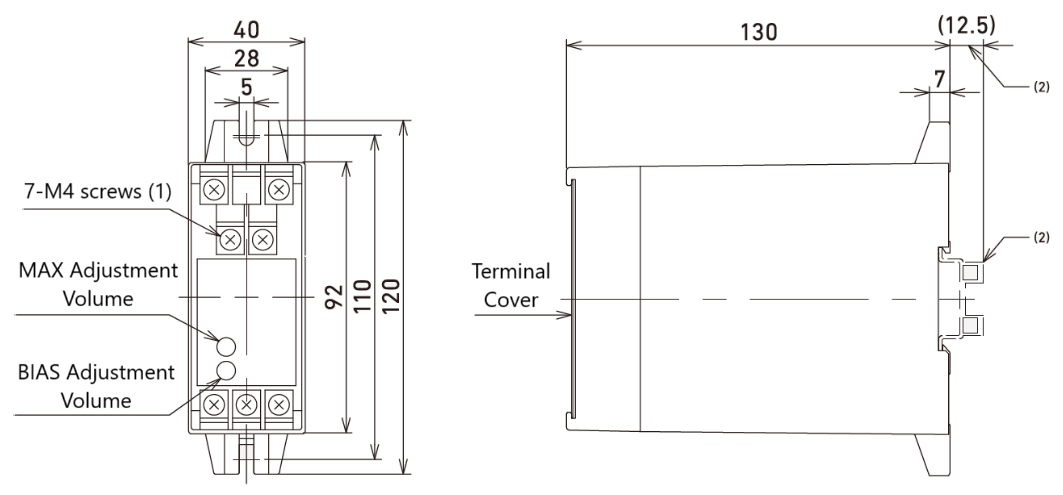

External dimensions (Unit : mm)

Note (1) The number of screws varies depending on the model.
Note (2) For installation on an IEC/DIN rail (height 15 mm). Use a rail with a width of 35 mm.
