Manufacturer: Daiichi Electronics Co., Ltd.

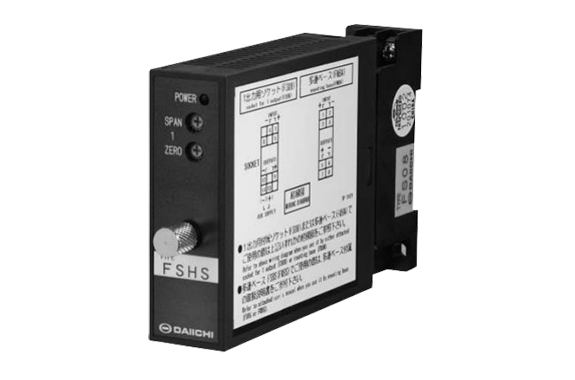

Model: FSHS

Features

• Insulation withstand voltage between input and output: AC 1,500V (50/60Hz) for 1 minute.
• Insulation withstand voltage between input, auxiliary power supply, and enclosure: AC 2,000V (50/60Hz) for 1 minute.
• Since this is a constant voltage/current output type, adjustment is not necessary when used within the load resistance range.
• Power supply status can be confirmed via LED.
• Zero and span adjustment is possible. (±2% adjustable)

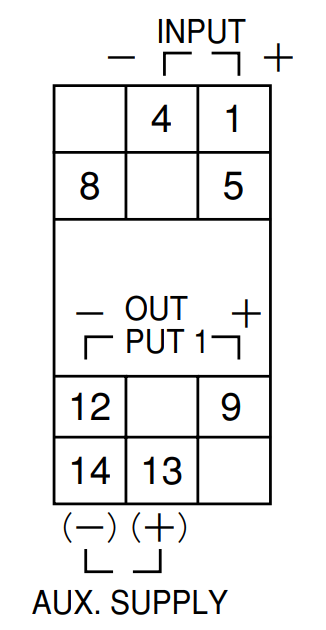

Wiring Diagram
