Manufacturer: Daiichi Electronics Co., Ltd.

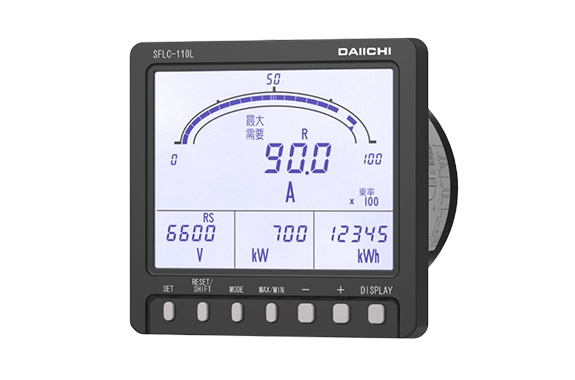

Model: SFLC-110L

Features

• Available in three-phase three-wire, single-phase, and single-phase three-wire types.
• Displays 1 bar graph and 4 digital measurements simultaneously.
• Optional: 3 analog outputs, 1 pulse output, 1 alarm output, or communication output.
• Resettable via external input with selectable alarm and max/min value functions.
• Wide power supply range: AC85–264V / DC80–143V (AC/DC compatible).
• Fits standard 110mm square mechanical meter panel cutouts.
• High-contrast LCD with adjustable white backlight.

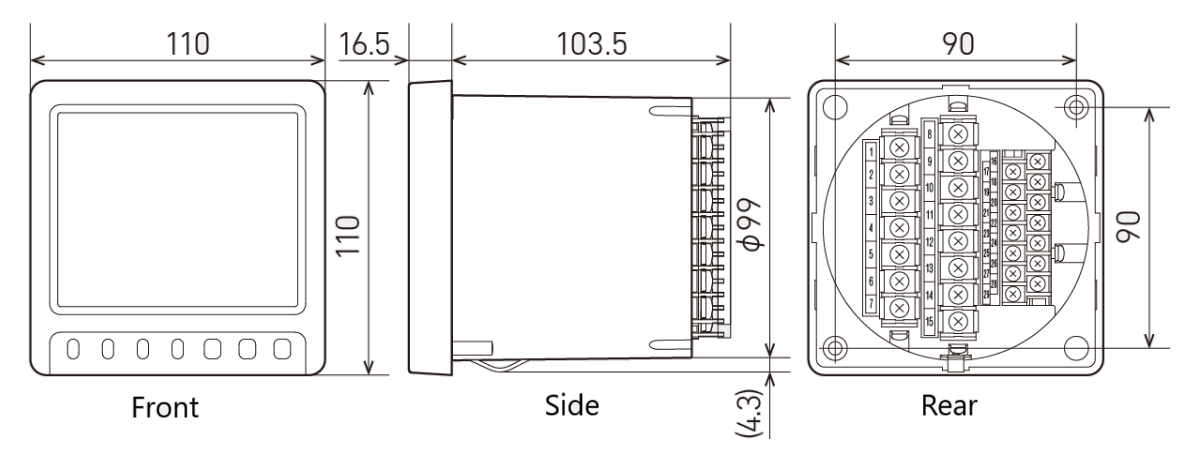

External dimensions

• Unit: mm
• Weight: Approx. 600g
