Manufacturer: Daiichi Electronics Co., Ltd.

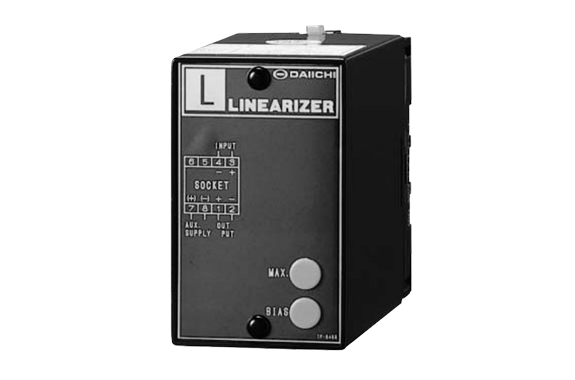

Model: LTP1-A6F5

Features

• A digital linearizer using ADC, ROM, and DAC.
• Constant voltage and constant current output.
• Withstand voltage: 2,000 V AC (50/60 Hz) for 1 minute between the entire circuit and the enclosure, and between input/output and auxiliary power.
  Also, 1,500 V AC (50/60 Hz) for 1 minute between input and output.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations each (between electrical circuit and enclosure).

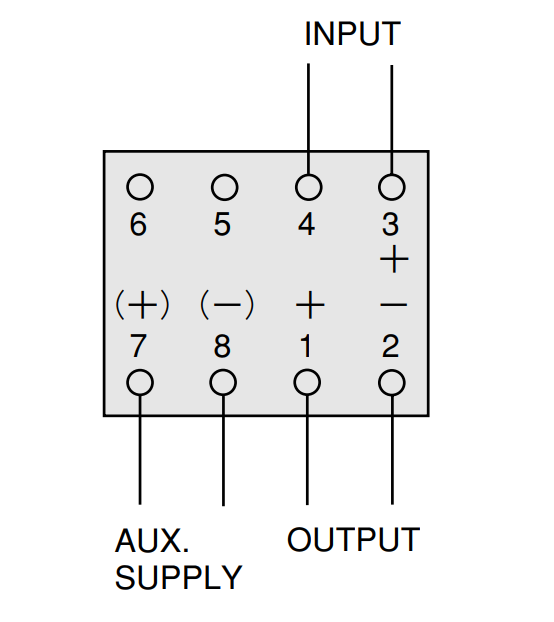

Wiring Diagram
