Manufacturer: Daiichi Electronics Co., Ltd.

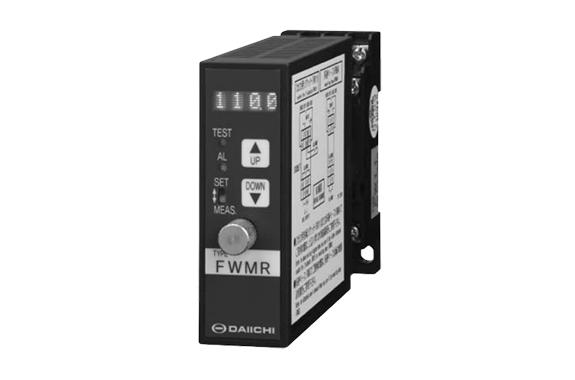

Model: FWMR

Features

• Fast Response: 35 ms operation time (40 ms with FWFV)
• High Dielectric Strength:
  Between input, output, auxiliary power, and enclosure: AC 2,000 V (50/60 Hz), 1 minute
  Between alarm outputs: AC 500 V, mutually insulated
• Alarm Output:
  2 channels
  Configurable for ON/OFF at detection
• Adjustable Settings:
  Trip mode: 105.0%–120.0%, 0.1% steps
  Test mode with backup lockout: 90.0%–120.0%, 0.1% steps
• Digital Display: Settings viewable on digital screen
• Monitor Lamp: Indicates detection status

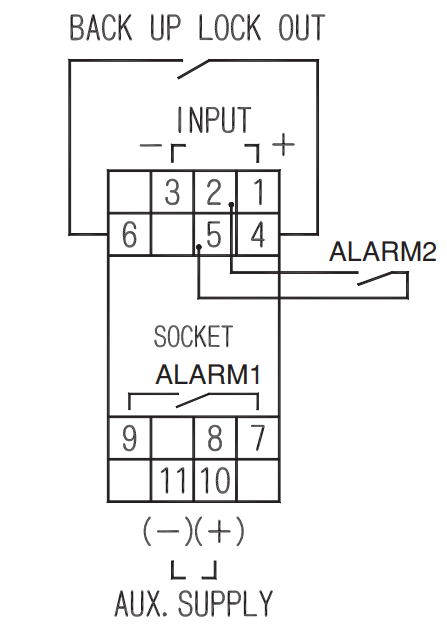

Wiring Diagram
