Manufacturer: Daiichi Electronics Co., Ltd.

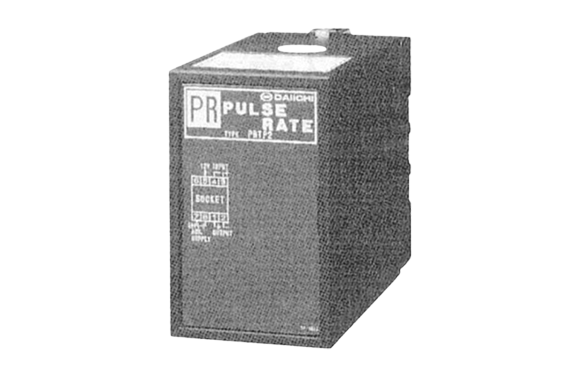

Model: PRTP2-141

Features

• Designed with AC 2,000 V withstand voltage between input, output, and power supply for safe operation.
• Standard sensor power supply: DC 12 V, 30 mA.
• Compatible with input frequencies from 0.01 Hz to 1 kHz.
• Input supports voltage pulse and open collector no-voltage contact; output options include voltage pulse, open collector, 1a contact, and photo-MOS relay—offering rich functionality.
• Equipped with carefully selected components and low internal heat generation for extended product lifespan and high reliability.

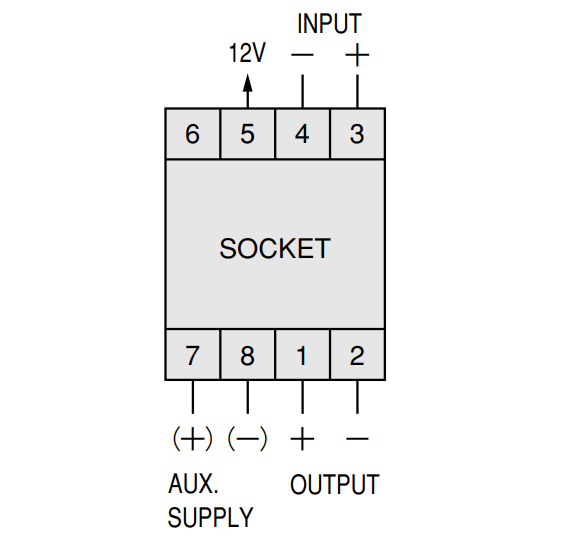

Wiring Diagram
