Manufacturer: Daiichi Electronics Co., Ltd.

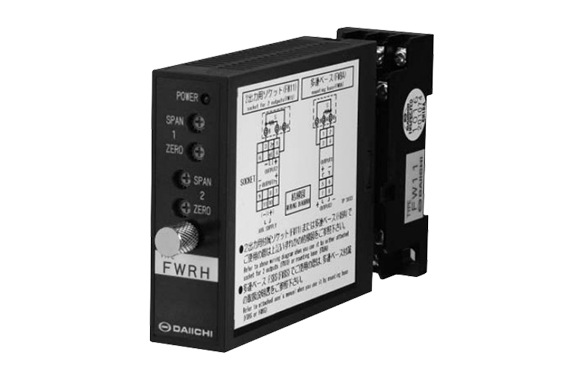

Model: FWRH

Features

• Compact size with high dielectric strength design. Power-on status can be checked by LED.
• Dielectric strength between input, output, auxiliary power, and enclosure: AC 2000 V (50/60 Hz) for 1 minute.
• Dielectric strength between output channels: AC 500 V (50/60 Hz) for 1 minute.
• As a constant-voltage/current output type, no adjustment is required when used within the specified load resistance range.
• Independent zero and span adjustments for output 1 and output 2 (±2% adjustment possible).
• Burnout function can be specified as either positive or negative burnout. This device uses a 3-wire connection type.

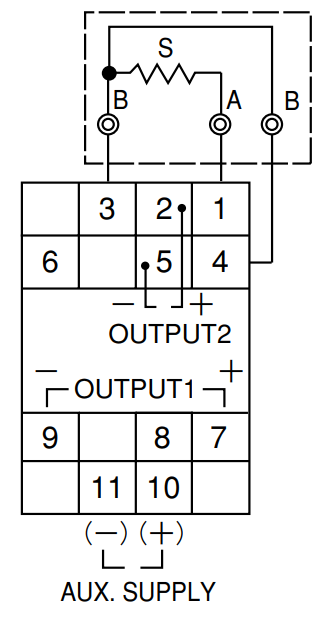

Wiring Diagram
