Manufacturer: Daiichi Electronics Co., Ltd.

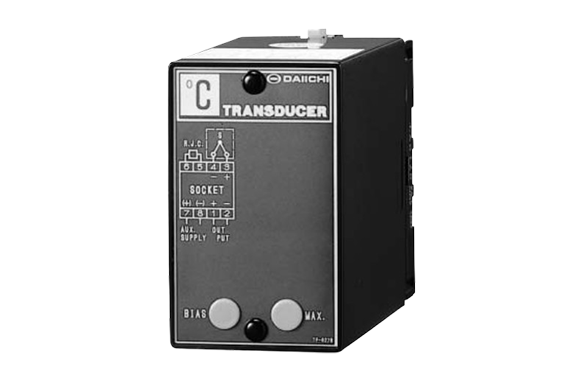

Model: HTP1-K8F5

Features

• Constant voltage and constant current output.
• Meets withstand voltage of AC 1,500 V (50/60 Hz) for 1 minute between input, output, auxiliary power, and ground.
• Impulse withstand voltage: 5 kV, 1.2/50 μs between the electrical circuit and enclosure, positive and negative polarity, guaranteed for three iterations each.
• Equipped with surge protection between output lines (2,000 A, 8/20 μs, positive and negative polarity), enabling direct transmission to remote locations.

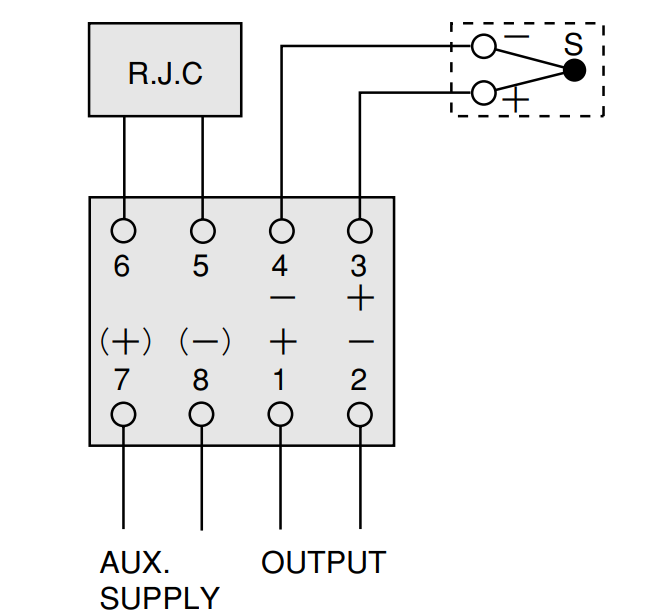

Wiring Diagram
