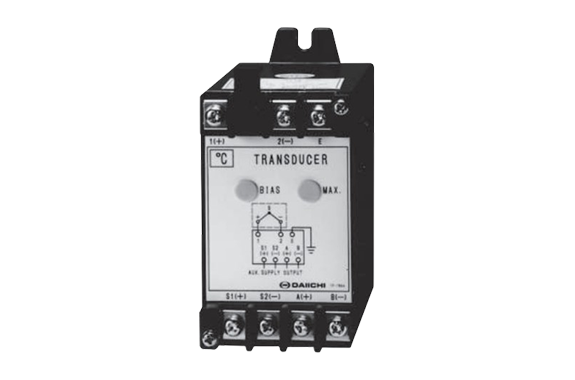

Manufacturer: Daiichi Electronics Co., Ltd.
Model: HTT2-82A / HTT2-83A

Features

• Satisfies a withstand voltage of AC 2,000V (between input, output, auxiliary power supply, and earth).
• Guarantees impulse withstand voltage of 5kV 1.2/50 μs with both positive and negative polarity, 3 times (between electric circuits and earth).
• Equipped with output line surge protection (2,000A ±8/20 μs), allowing direct signal transmission over long distances.
• Provides constant voltage and constant current output.

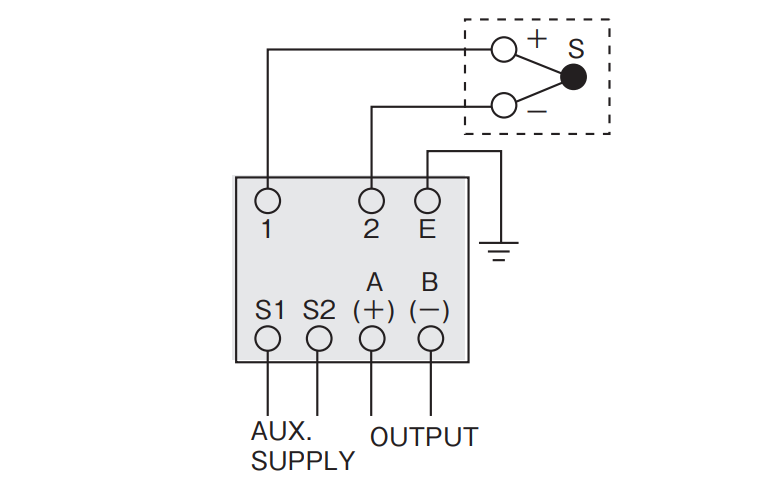

Wiring Diagram

Note: If the auxiliary power supply is DC, connect S1 as (+) and S2 as (−).
