Daiko Keiki Seisakusho Co.

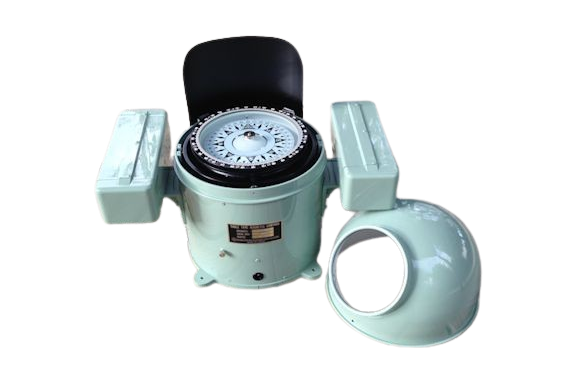

Daiko T-130SLK/ T-150SLK Table Compass (Type Approval)
Manufacturer: Daiko Keiki Seisakusho Co.,Ltd.
Model: T-130SLK/ T-150SLK
Features
- Supplied with standard accessories
- Bottom-lit (DC 24V)
- Equipped with an emergency power switch
- Operating temperature range: -20°C to 60°C.
- Production of the 4-inch compass has been discontinued as it does not comply with the standards for ship inspections (card diameter 115 mm or more).
Specifications
| Model | Card | H (mm) | W (mm) | Weight (kg) |
| Dia. (inch) | ||||
| T-130SLK | 5″ | 328 | 420 | 6.8 |
| T-150SLK | 6″ | 355 | 460 | 10.2 |
Dimensions (mm)

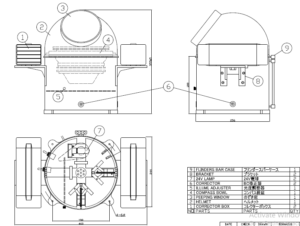

T-130SLK

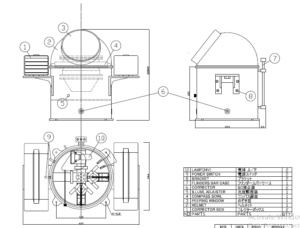

T-150SLK
