Manufacturer: Daikoken Heat Co., Ltd.
Model: SHBR Series

Specifications

• The standard SH series is arranged to handle products with capacities from 4 kW to 55 kW.
• For the exhaust vent, the standard models have a 50mm, 65mm, 75mm, or 100mm diameter that can be selected up to a 4-minute range.

Model Types:

• SHBR-3 (4/5 kW)
• SHBR-4 (6/7.5 kW)
• SHBR-5 (8/10 kW)
• SHBR-6 (12/15 kW)
• SHBR-7 (15/18 kW)
• SHBR-8 (20/24/25/30 kW)
• SHBR-9 (30/33 kW)

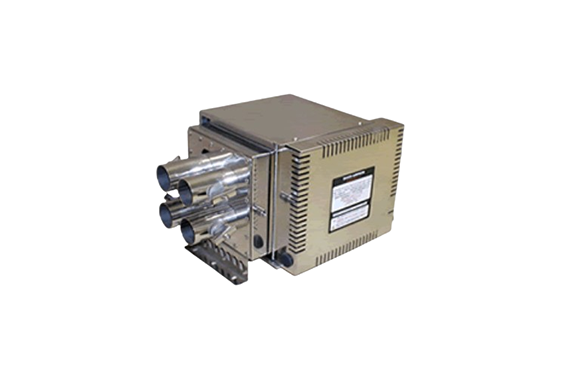

Exhaust part type with 4 outlets

• The specifications of the exhaust part, such as the size of the exhaust vent, the number of outlets, and the type of heater, vary depending on the model, so please inquire for details.
• For details about the shape, size, performance, and specifications of the brand heater, refer to pages P7 to P9 of the catalog (SH model).
