Daito Communication Apparatus Co.

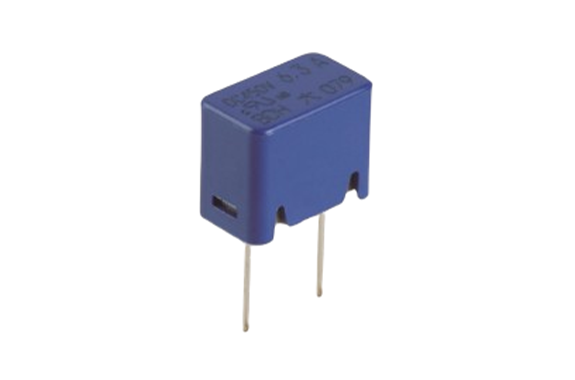

Daito BDH Fuse DC Fuses For DC Circuit
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BDH Fuse
Features
- This product is a fuse for DC circuits.
- This product is a fuse for DC circuits.
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| BDH10 | 1 A | DC 450 V 100 A | 0.24 Ω | 0.31 A²·s |
| BDH13 | 1.25 A | 0.17 Ω | 0.68 A²·s | |
| BDH16 | 1.6 A | 0.13 Ω | 1 A²·s | |
| BDH20 | 2 A | 98 mΩ | 2.1 A²·s | |
| BDH25 | 2.5 A | 38 mΩ | 1.4 A²·s | |
| BDH32 | 3.15 A | 28 mΩ | 2.5 A²·s | |
| BDH40 | 4 A | 23 mΩ | 4.2 A²·s | |
| BDH50 | 5 A | 17 mΩ | 7.4 A²·s | |
| BDH63 | 6.3 A | 14 mΩ | 13 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 1 minute |

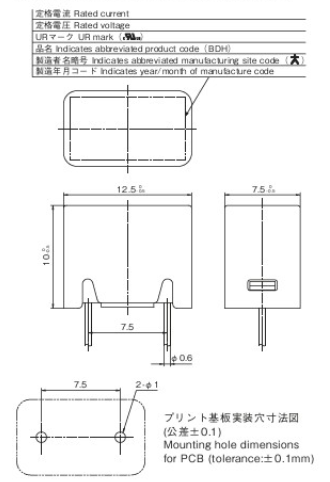

- Dimensions & Weight Size, Net Width
- 12.5×7.5×10mm 1.2g
- Color
- Blue
- Package
- 800 pcs / Taping Tsussula Rack 500pcs / Loose
Boxed 800pcs / Continuous Taping 500pcs / Bulk
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -40°C~85°C, -25°C~40°C (Taping state)
