Daito Communication Apparatus Co.

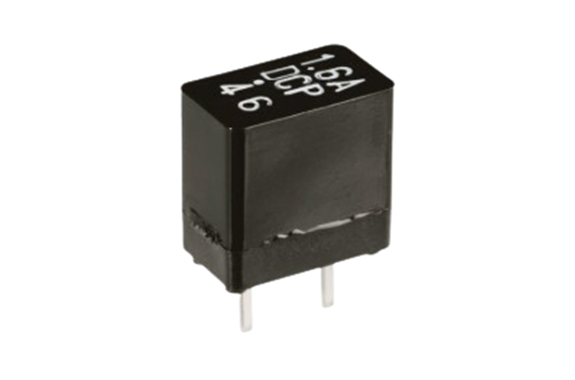

Daito DCP Fuse DC Fuses For DC Circuit
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: DCP Fuse
Features
- This product is a fuse for DC circuits.
- By using the dedicated holder, you can replace the melting fuse.
- This product is a fuse for DC circuits.
- By using a fuse holder, blown fuses can be replaced.
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| DCP05 | 0.5 A | DC 450 V 100 A | 0.55 Ω | 0.051 A²·s |
| DCP10 | 1 A | 0.21 Ω | 0.29 A²·s | |
| DCP16 | 1.6 A | 0.12 Ω | 1 A²·s | |
| DCP20 | 2 A | 83 mΩ | 2 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.
*3: Possible to use with fuse holder HM1H (H).
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 5 seconds |

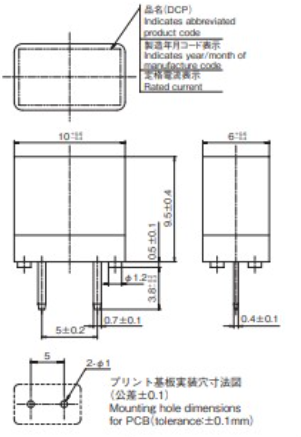

- Dimensions & Weight Size, Net Width
- 10×6×10mm 0.7g
- Color
- Black
- Package
- 50 pcs/stick
50pcs/stick
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -40℃～85℃
