Daito Communication Apparatus Co.

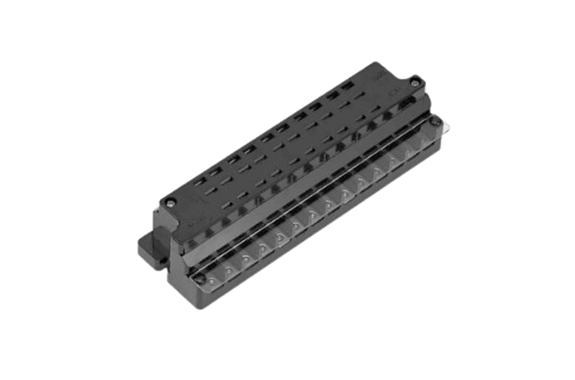

Daito DS-401A Alarm Indicating Fuses & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: DS-401A
Features
- This product is a fuse holder for P4 / PL4, P4 / PL4 (BSS), P4H, P4L, and PL4L fuses.
- Up to 10 compatible fuses can be implemented.
- This product has five branch circuits, and all alarm circuits are standard.
- This is a fuse holder for P4 / PL4・P4 / PL4(BSS)・P4H・P4L / PL4L fuses.
- It can mount up to 10 fuses.
- This product has 5 branch circuits, and all alarm circuits are common.
- Mounting method: Panel mount (Surface wiring connection)
Specifications
| Cat. No. | Rated Voltage | Carrying Capacity | Withstand Voltage | ||
|---|---|---|---|---|---|
| Classification | Carrying Capacity | Between Terminals | Test Voltage | ||
| DS-401A | AC 220 V DC 250 V | Power Supply Circuit | 25 A | Other | AC 2,500 V 1 minute |
| Load Circuit | 10 A | ||||
| Alarm Circuit | 5 A | Between Alarm Terminals | AC 1,000 V 1 minute | ||
Insulation resistance: Min. 100 MΩ at DC 500 V; min. 10 MΩ between alarm terminals.

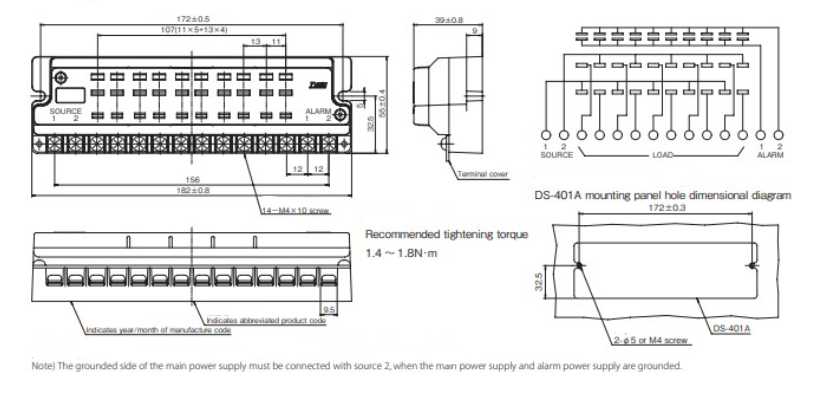

- Dimensions & Weight Size, Net Width
- 182 x 55 x 39mm 340g
- Color
- Black
- Package
- 1 piece/boxed
1pcs/box
- Range of ambient temperature
- -20°C~70°C
- Storage temperature
- -40℃～85℃
