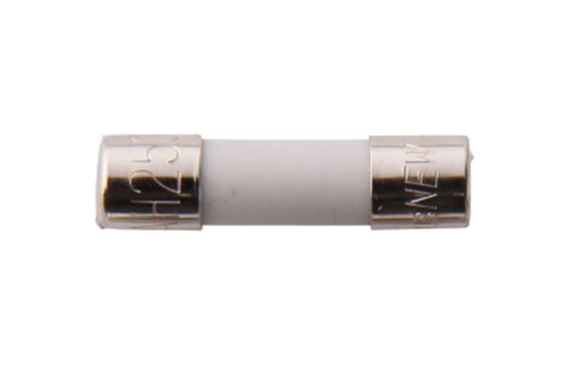

Daito ES1 Fuse Tubular Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: ES1 Fuse
Features
- Trade mark: NEW
- Rated current: 8A, 10A, 12.5A
Specifications
| Cat. No. | Rated Current (A) | Breaking Capacity | Typ. Resistance (Ω) | Joule Integral (A²·s) |
|---|---|---|---|---|
| ES1-8000 | 8 | AC 250V 1,500A | 10.8 mΩ | 90 |
| ES1-10000 | 10 | DC 76V 1,000A | 8.3 mΩ | 160 |
| ES1-12500 | 12.5 | DC 76V 1,000A | 5.0 mΩ | 400 |
Notes:
- Values measured at ≤10% of rated current.
- Joule Integral is the value of 1ms of I²t characteristics.
- Item No of “「」” indicates CULM. CU indicates material of fuse element; LM indicates laser marking.
Carrying Capacity & Clearing Time
| Carrying Capacity | Clearing Time |
|---|---|
| 150% | 210% within 30 min 275% 0.04s–20s 400% 0.01s–1s 1000% within 30ms |

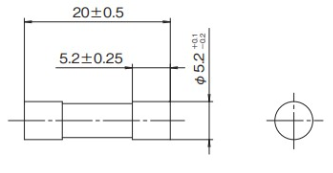

- Dimensions & Weight Size, Net Width
- Φ5.2×20mm 0.9g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~80°C
- Storage temperature
- -40℃～80℃
