Daito Communication Apparatus Co.

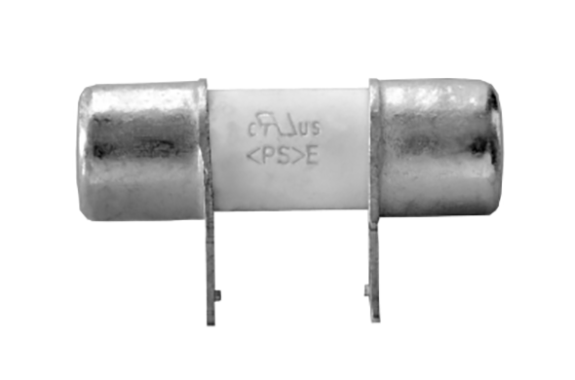

Daito FCRA1 30A:P1 Tubular Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: FCRA1 30A:P1
Features

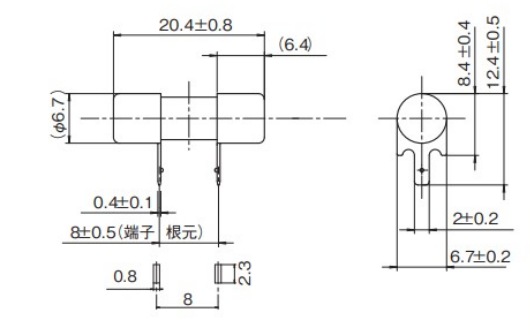

- External dimensions and weight
- Φ6.7×20mm 2.3g
Packaging
Minimum order quantity: 500 units, bulk packaging
Operating temperature range
-40℃ to 80℃
*If you are considering using it outside this range, please feel free to contact us .
Storage temperature
-40℃ to 80℃
Compatible fuse/holder
Product Description
Manufacturer’s Trademark: NEW
Specifications Table 1
| Nominal Value | ||||
|---|---|---|---|---|
| Cat. No. | Rated Current | Breaking Capacity | Typ. Resistance*1 | Joule Integral*2 |
| FCRAI 30A:P1 | 30A | AC 250V, 500A | 2.0mΩ | 260A²·s |
*1: Measured in the cold state at 10% or less of the rated current.
*2: Joule Integral is the value at 1 ms of the I²t-t characteristics.
*3: Please contact us when using this fuse at an ambient temperature higher than 105°C.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 2 minutes |
