Daito Communication Apparatus Co.

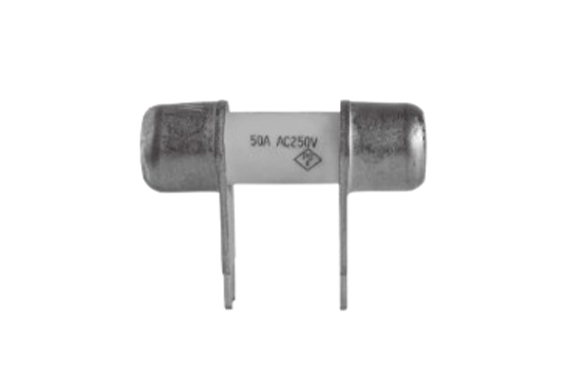

Daito FGAE Fuse Tubular Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: FGAE Fuse
Features
- Trade mark: NEW
- Rated current: 40A, 50A
Specifications
FGAE1 Fuse Specifications
| Cat. No. | Rated Current (A) | Breaking Capacity | Typ. Resistance (Ω) | Joule Integral (A²·s) |
|---|---|---|---|---|
| FGAE1 40A | 40 | AC 250V 5,000A | 2.26 mΩ | 1,600 |
| FGAE1 50A | 50 | AC 250V 5,000A | 1.78 mΩ | 2,000 |
Notes
- Values measured at ≤10% of rated current.
- Joule Integral is the value of 1ms of I²t characteristics.
Carrying Capacity & Clearing Time (FGAE1 Fuse)
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 400% within 2 minutes |

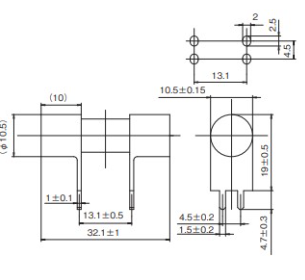

- Dimensions & Weight Size, Net Width
- Φ10.5×32.1mm 10.5g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~105°C
- Storage temperature
- -40℃～80℃
