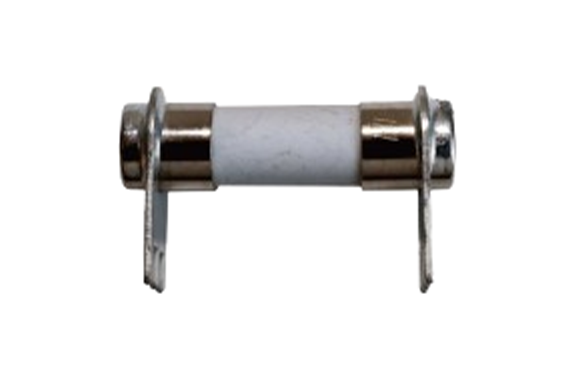

Daito GAC1 25A～40A Tubular Fuses

Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: GAC1 25A～40A

Features

Cat. No.	Rated Current (A)	Breaking Capacity	Typ. Resistance (Ω)	Joule Integral (A²·s)
GAC1 0.8A	0.8	AC 600V 10,000A	1.03	0.31
GAC1 1A	1	AC 600V 10,000A	0.73	0.67
GAC1 1.25A	1.25	AC 600V 10,000A	0.55	1.2
GAC1 1.6A	1.6	AC 600V 10,000A	0.41	2.2
GAC1 2A	2	AC 600V 10,000A	0.30	2.2
GAC1 2.5A	2.5	AC 600V 10,000A	0.22	7.1
GAC1 3.15A	3.15	AC 600V 10,000A	0.16	13
GAC1 4A	4	DC 125V 1,000A	0.11	22
GAC1 5A	5	DC 125V 1,000A	0.84	36
GAC1 6.3A	6.3	DC 125V 1,000A	0.37	40
GAC1 8A	8	DC 125V 1,000A	0.27	68
GAC1 10A	10	DC 125V 1,000A	0.20	110
GAC1 12.5A	12.5	DC 125V 1,000A	7.8 mΩ	130
GAC1 16A	16	DC 125V 1,000A	5.7 mΩ	260
GAC1 20A	20	DC 125V 1,000A	3.3 mΩ	520
GAC1 25A : PLM	25	AC 500V 1,500A, DC 125V 1,000A	2.8 mΩ	660
GAC1 31.5A : PLM	31.5	AC 500V 1,500A, DC 125V 1,000A	1.8 mΩ	1,400
GAC1 40A : PLM	40	AC 500V 1,500A, DC 125V 1,000A	1.5 mΩ	2,600
GAC1 50A : PLM	50	AC 250V 1,500A, DC 125V 1,000A	1.4 mΩ	3,500
GAC1 63A : PLM	63	AC 250V 1,500A, DC 125V 1,000A	1.3 mΩ	8,000
GAC1 70A : PLM	70	AC 250V 1,500A, DC 125V 1,000A	1.1 mΩ	10,000
GAC1 80A : PLM	80	AC 250V 2,500A, DC 125V 1,000A	1.0 mΩ	6,300

Carrying Capacity	Clearing Time
100%	200% within 2 minutes

□ indicates PLM or SLM terminal type.
P: Printed circuit board mounting terminal (plate type).
S: Printed circuit board mounting terminal (straight type).
LM: Laser marking. PLM/SLM and LM indicate the terminal type and laser marking, respectively.
