Daito Communication Apparatus Co.

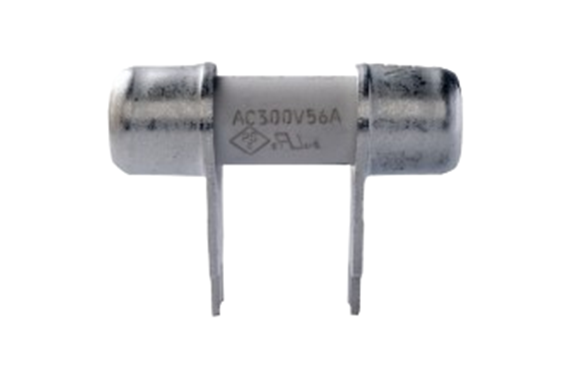

Daito GAE1 56A Tubular Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: GAE1 56A
Features
- Trade mark (Manufacturer): NEW
Specifications
GAE1 56A Fuse Specifications
| Cat. No. | Rated Current (A) | Breaking Capacity | Typ. Resistance (Ω) | Joule Integral (A²·s) |
|---|---|---|---|---|
| GAE1 56A | 56 | AC 300V 1,500A | 1.3 mΩ | 5,200 |
Notes
- Values measured at ≤10% of rated current.
- Joule Integral is the value of 10ms of I²t characteristics.
- Please consult if using this fuse at temperatures above 105°C.
Carrying Capacity & Clearing Time (GAE1 56A Fuse)
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 2 minutes |

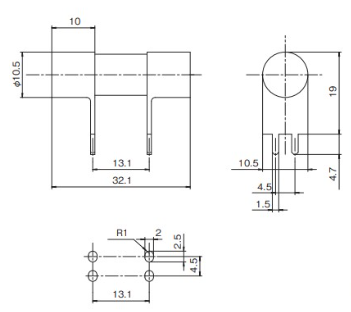

- Dimensions & Weight Size, Net Width
- Φ10.5×32mm 10g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~125°
- Storage temperature
- -40℃～80℃
