Daito Communication Apparatus Co.

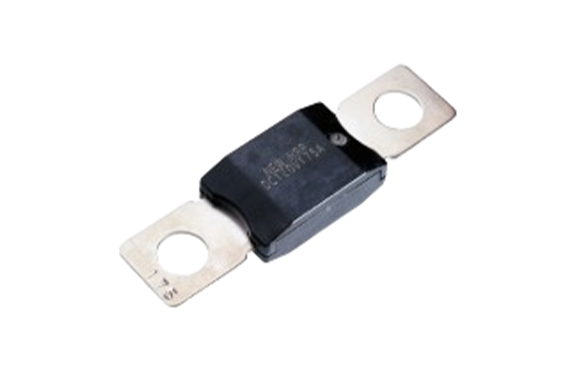

Daito HRP 175A DC Fuses For DC Circuit
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: HRP 175A
Features
- This product is a fuse for DC circuits.
- This product is a fuse for DC circuits.
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| HRP 175A | 175 A | DC 120 V 2,000 A | 0.3 mΩ | 150,000 A²·s |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 135% 2–30 minutes 200% 1–15 seconds 350% 0.3–5 seconds 600% 0.1–1 seconds |

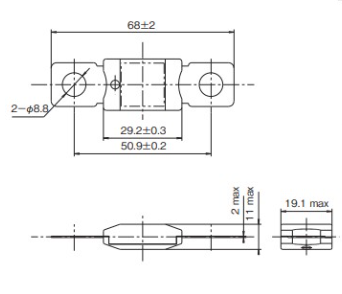

- Dimensions & Weight Size, Net Width
- 68×19.1×11mm 10g
- Color
- Black
- Package
- Minimum 200 units,
Bulk package minimum200 units
- Range of ambient temperature
- -40°C~125°
- Storage temperature
- -40℃～85℃
