Daito Communication Apparatus Co.

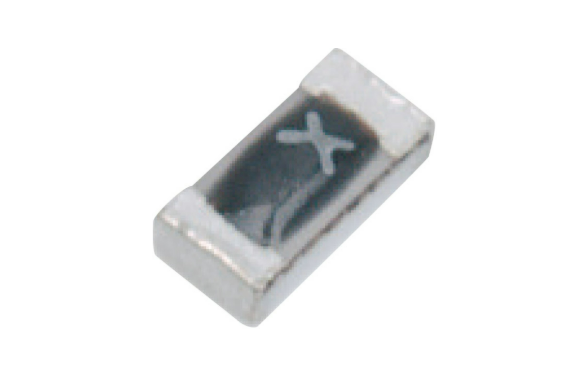

Daito KMD02-KMD05 Fuse
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: KMD02-KMD05
Features
External Dimensions and Weight - 1.6 x 0.8 x 0.5 mm, 2 mg
Color BlACK Packaging 5,000 pieces per taping reel Operating Temperature Range -20°C to 60°C Storage Temperature -25°C to 40°C Compatible Fuse/Holder Product Description
Rated current: 0.2A, 0.25A, 0.315A, 0.4A, 0.5A
Specifications Table 1
| Nominal Value | ||||
|---|---|---|---|---|
| Cat. No. | Rated Current | Breaking Capacity | Typ. Resistance*1 | Joule Integral*2 |
| KMD02 | 0.2A | DC 50V, 50A | 1.3Ω | 0.00024A²·s |
| KMD025 | 0.25A | 0.71Ω | 0.0007A²·s | |
| KMD03 | 0.315A | 0.5Ω | 0.0013A²·s | |
| KMD04 | 0.4A | 0.31Ω | 0.0032A²·s | |
| KMD05 | 0.5A | 0.19Ω | 0.005A²·s | |
| KMD06 | 0.63A | DC 32V, 50A | 0.14Ω | 0.0074A²·s |
| KMD08 | 0.8A | 0.1Ω | 0.01A²·s | |
| KMD10 | 1A | 72mΩ | 0.015A²·s | |
| KMD13 | 1.25A | 61mΩ | 0.022A²·s | |
| KMD16 | 1.6A | 42mΩ | 0.029A²·s | |
| KMD20 | 2A | 35mΩ | 0.04A²·s | |
| KMD25 | 2.5A | DC 24V, 50A | 25mΩ | 0.053A²·s |
| KMD30 | 3.15A | 22mΩ | 0.069A²·s | |
- *1: Measured in the cold state at 10% or less of the rated current.
- The KMD14 type with a rated current of 1.4A is also available.
- *2: Joule Integral is the value at 0.1 ms of the I²t-t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 1 minute |
