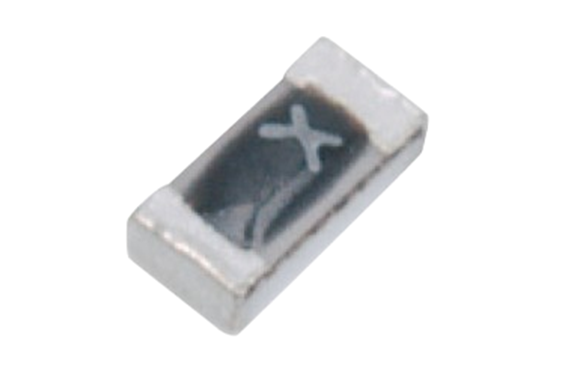

Daito KMD06～KMD20 Chip Fuses
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: KMD06～KMD20
Features
- Rated current: 0.63A, 0.8A, 1A, 1.25A, 1.6A, 2A
Specifications
| Cat. No. | Rated Current (A) | Breaking Capacity | Typ. Resistance (Ω) | Joule Integral (A²·s) |
|---|---|---|---|---|
| KMD02 | 0.2 | DC 50V 50A | 1.3 | 0.00024 |
| KMD025 | 0.25 | DC 50V 50A | 0.71 | 0.0007 |
| KMD03 | 0.315 | DC 50V 50A | 0.5 | 0.00132 |
| KMD04 | 0.4 | DC 50V 50A | 0.31 | 0.0032 |
| KMD05 | 0.5 | DC 50V 50A | 0.19 | 0.0054 |
| KMD06 | 0.63 | DC 32V 50A | 0.14 | 0.0074 |
| KMD08 | 0.8 | DC 32V 50A | 0.1 | 0.01 |
| KMD10 | 1 | DC 32V 50A | 0.072 | 0.0154 |
| KMD13 | 1.25 | DC 32V 50A | 0.061 | 0.0224 |
| KMD16 | 1.6 | DC 32V 50A | 0.042 | 0.0294 |
| KMD20 | 2 | DC 32V 50A | 0.035 | 0.04 |
| KMD25 | 2.5 | DC 24V 50A | 0.025 | 0.0534 |
| KMD30 | 3.15 | DC 24V 50A | 0.022 | 0.0694 |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 0.1 ms of I²t characteristics.
Note: The type of KMD14 with rated current 1.4 A is also available.
| Rated Current Mark | Rated Current |
|---|---|
| P | 0.2 A |
| Q | 0.25 A |
| R | 0.315 A |
| S | 0.4 A |
| T | 0.5 A |
| U | 0.63 A |
| V | 0.8 A |
| W | 1 A |
| X | 1.25 A |
| Y | 1.6 A |
| 2 | 2 A |
| Z | 2.5 A |
| 3 | 3.15 A |
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 200% within 1 minute |

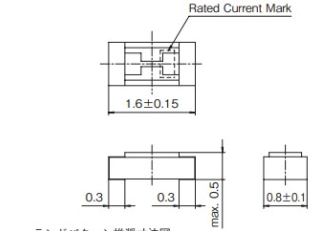

- Dimensions & Weight Size, Net Width
- 1.6×0.8×0.5mm 2mg
- Color
- Black
- Package
- 5,000 taping grills
5,000pcs/taping reel
- Range of ambient temperature
- -40°C~100°
- Storage temperature
- -25℃～40℃
