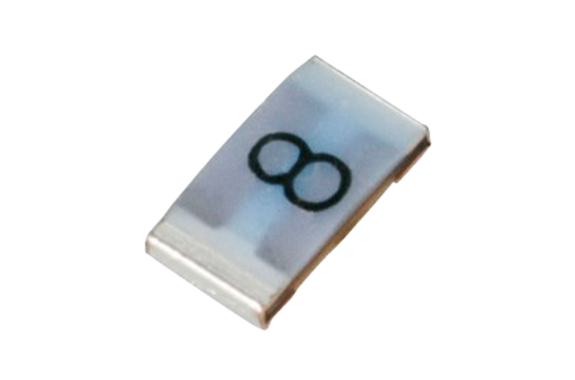

Daito KMS Fuse Chip Fuses

Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: KMS Fuse

Features

  • This product is a compact (3216 size) chip fuse with a rated current of up to 15A.
  • Due to its characteristics, it is used in battery-powered transport equipment.
  • This product is small (3216 size) SMD fuse and has a wide range of rated currents up to 15A.
  • Due to its characteristics, it is used in battery-powered transportation equipment.
  • Rated current: 1.6A, 2A, 2.5A, 3.15A, 4A, 5A, 6.3A, 7.1A, 8A, 10A, 12.5A, 15A
  • Markets: Power supplies, OA equipment, material handling equipment
  • Applications: Power supply, OA equipment, Material handling equipment

Specifications

Cat. No.Rated Current (A)Breaking CapacityTyp. Resistance (Ω)Joule Integral (A²·s)
KMS161.6DC 76V 50A45 mΩ0.15
KMS202DC 76V 50A35 mΩ0.3
KMS252.5DC 76V 50A26 mΩ0.4
KMS323.15DC 76V 50A19 mΩ0.75
KMS404DC 76V 50A14 mΩ1.8
KMS505DC 76V 50A10 mΩ3.1
KMS636.3DC 76V 50A8.7 mΩ4
KMS717.1DC 76V 50A7.4 mΩ5
KMS808DC 76V 50A6.3 mΩ7
KMS10010DC 76V 50A5.3 mΩ14
KMS12512.5DC 76V 50A3.7 mΩ24
KMS15015DC 76V 50A2.8 mΩ46

Notes:

  1. Values measured at ≤10% of rated current.
  2. Joule Integral is the value of 1ms of I²t characteristics.

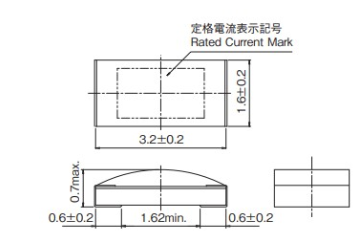

Dimensions & Weight Size, Net Width
3.2×1.6×0.7mm 4.5mg
Color
Bluish White
Package
3,000 taping grills
3,000pcs/taping reel
Range of ambient temperature
-20°C~85°
Storage temperature
-25℃～40℃
