Manufacturer: Daito Kogyo Co., Ltd.
Model: KR-S type 3/8 – 1B

Features

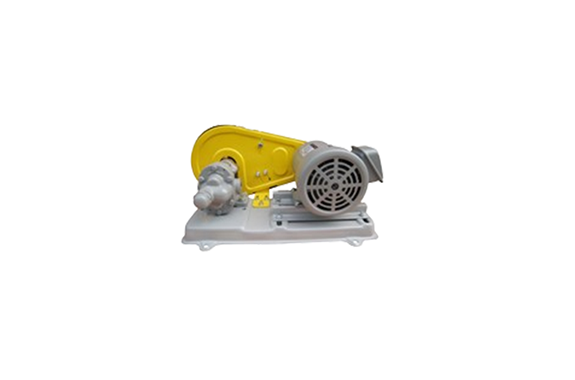

• A gear pump for kerosene, heavy oil A, and various lubricant oils.
• The shaft seal has a two-stage oil seal unit structure.
• It is possible to use Viton for the O-ring oil seal. In principle, it is a V belt drive.

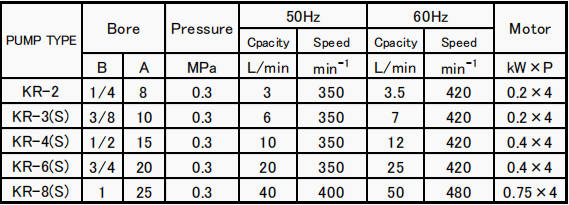

Specifications

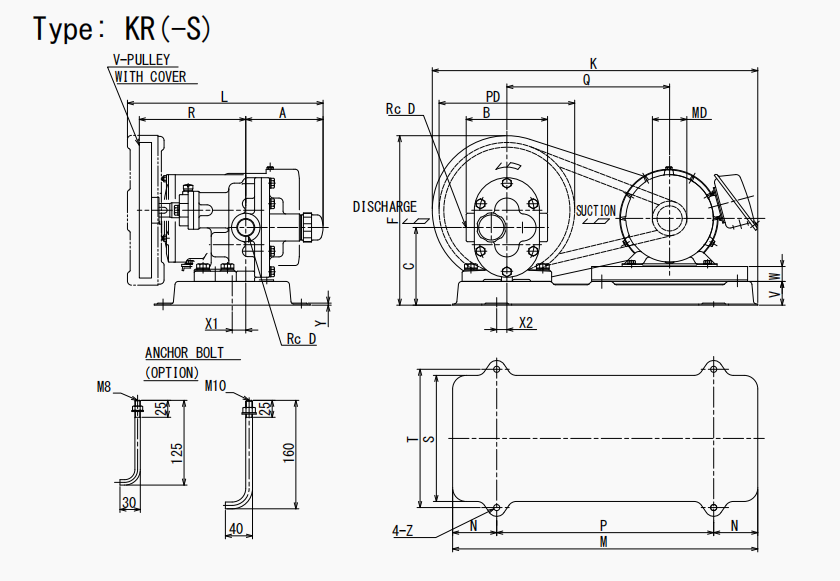

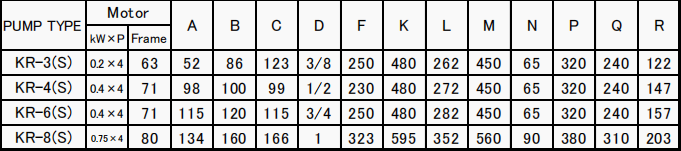

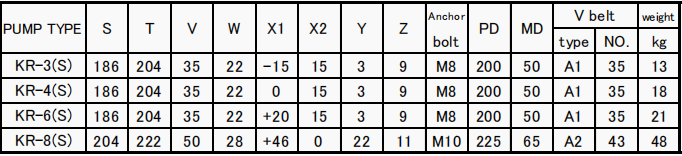

V belt drive S ize table

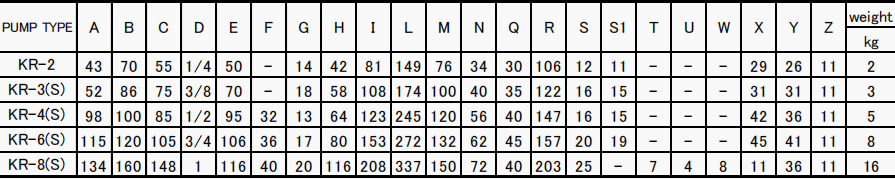

PUMP Size table
