Daito Kogyo OH-G Type 3/4 – 8B Shaft Seal
Manufacturer: Daito Kogyo Co., Ltd.
Model: OH-G type 3/4 – 8B
Features
The shaft seal is a gland packing type.
Specifications

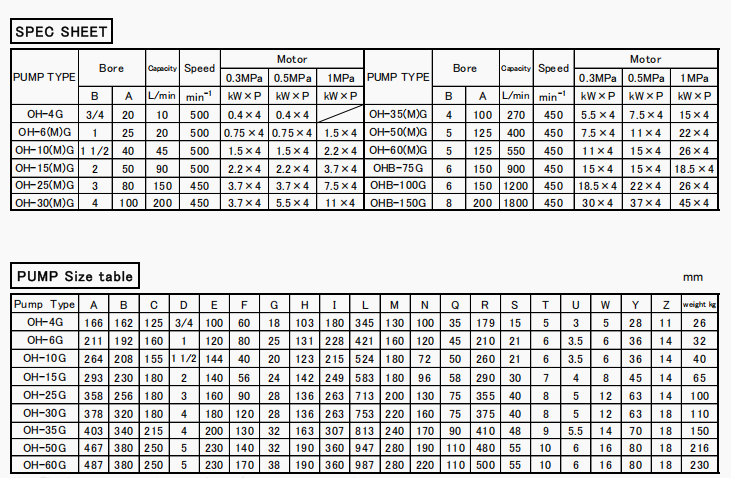

SPEC SHEET
| PUMP TYPE | Bore | Capacity | Speed | Motor | PUMP TYPE | Bore | Capacity | Speed | Motor | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.3MPa | 0.5MPa | 1MPa | 0.3MPa | 0.5MPa | 1MPa | ||||||||||
| B | A | L/min | min-1 | kW × P | kW × P | kW × P | B | A | L/min | min-1 | kW × P | kW × P | kW × P | ||
| OH-4G | 3/4 | 20 | 10 | 500 | 0.4 × 4 | 0.4 × 4 | OH-35(M)G | 4 | 100 | 270 | 450 | 5.5 × 4 | 7.5 × 4 | 15 × 4 | |
| OH-6(M)G | 1 | 25 | 20 | 500 | 0.75 × 4 | 0.75 × 4 | 1.5 × 4 | OH-50(M)G | 5 | 125 | 400 | 450 | 7.5 × 4 | 11 × 4 | 22 × 4 |
| OH-10(M)G | 1 1/2 | 40 | 45 | 500 | 1.5 × 4 | 1.5 × 4 | 2.2 × 4 | OH-60(M)G | 5 | 125 | 550 | 450 | 11 × 4 | 15 × 4 | 26 × 4 |
| OH-15(M)G | 2 | 50 | 90 | 500 | 2.2 × 4 | 2.2 × 4 | 3.7 × 4 | OHB-75G | 6 | 150 | 900 | 450 | 15 × 4 | 15 × 4 | 18.5 × 4 |
| OH-25(M)G | 3 | 80 | 150 | 450 | 3.7 × 4 | 3.7 × 4 | 7.5 × 4 | OHB-100G | 6 | 150 | 1200 | 450 | 18.5 × 4 | 22 × 4 | 26 × 4 |
| OH-30(M)G | 4 | 100 | 200 | 450 | 3.7 × 4 | 5.5 × 4 | 11 × 4 | OHB-150G | 8 | 200 | 1800 | 450 | 30 × 4 | 37 × 4 | 45 × 4 |

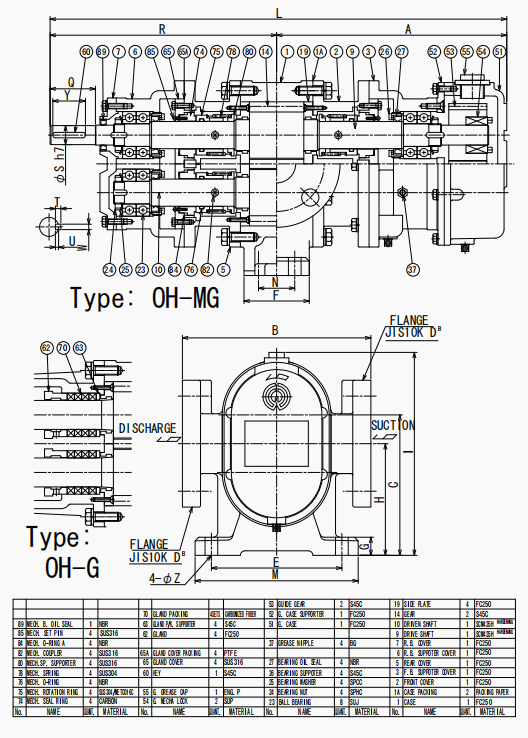

PUMP Size table (mm)
| Pump Type | A | B | C | D | E | F | G | H | I | L | M | N | Q | R | S | T | U | W | Y | Z | weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OH-4G | 166 | 162 | 125 | 3/4 | 100 | 60 | 18 | 103 | 180 | 345 | 130 | 100 | 35 | 179 | 15 | 5 | 3 | 5 | 28 | 11 | 26 |
| OH-6G | 211 | 192 | 160 | 1 | 120 | 80 | 25 | 131 | 228 | 421 | 160 | 120 | 45 | 210 | 21 | 6 | 3.5 | 6 | 36 | 14 | 32 |
| OH-10G | 264 | 208 | 155 | 1 1/2 | 144 | 40 | 20 | 123 | 215 | 524 | 180 | 72 | 50 | 260 | 21 | 6 | 3.5 | 6 | 36 | 14 | 40 |
| OH-15G | 293 | 230 | 180 | 2 | 140 | 56 | 24 | 142 | 249 | 583 | 180 | 96 | 58 | 290 | 30 | 7 | 4 | 8 | 45 | 14 | 65 |
| OH-25G | 358 | 256 | 180 | 3 | 160 | 90 | 28 | 136 | 263 | 713 | 200 | 130 | 75 | 355 | 40 | 8 | 5 | 12 | 63 | 14 | 100 |
| OH-30G | 378 | 320 | 180 | 4 | 180 | 120 | 28 | 136 | 263 | 753 | 220 | 160 | 75 | 375 | 40 | 8 | 5 | 12 | 63 | 18 | 110 |
| OH-35G | 403 | 340 | 215 | 4 | 200 | 130 | 32 | 163 | 307 | 813 | 240 | 170 | 90 | 410 | 48 | 9 | 5.5 | 14 | 70 | 18 | 150 |
| OH-50G | 467 | 380 | 250 | 5 | 230 | 140 | 32 | 190 | 360 | 947 | 280 | 190 | 110 | 480 | 55 | 10 | 6 | 16 | 80 | 18 | 216 |
| OH-60G | 487 | 380 | 250 | 5 | 230 | 170 | 38 | 190 | 360 | 987 | 280 | 220 | 110 | 500 | 55 | 10 | 6 | 16 | 80 | 18 | 230 |
