Daito Communication Apparatus Co.

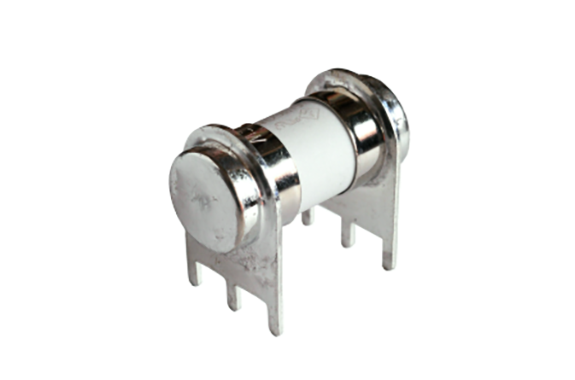

Daito LCR1 75A Tubular Fuse
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: LCR1 75A
Features

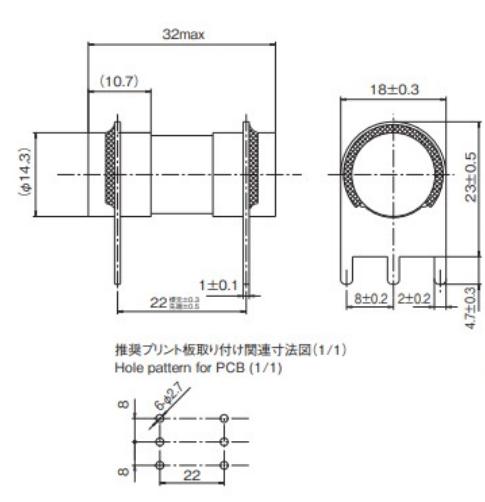

- External dimensions and weight
- Φ14.3×32mm 18g
- Packaging
- Minimum order quantity: 100 units, bulk packagin
- Operating temperature range
- -40℃ to 80℃
*If you are considering using it outside this range, please feel free to contact us .
- Storage temperature
- -40℃ to 80℃
- Compatible fuse/holder
Product Description
Manufacturer’s Trademark: NEW
Specifications Table 1
| Nominal Value | ||||
|---|---|---|---|---|
| Cat. No. | Rated Current | Breaking Capacity | Typ. Resistance*1 | Joule Integral*2 |
| LCR1 75A:P | 75A | AC 250V, 5,000A | 1.1mΩ | 900A²·s |
*1: Measured in the cold state at 10% or less of the rated current.
*2: Joule Integral is the value at 10 ms of the I²t-t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 100% | 400% within 2 minutes |
