Daito Communication Apparatus Co.

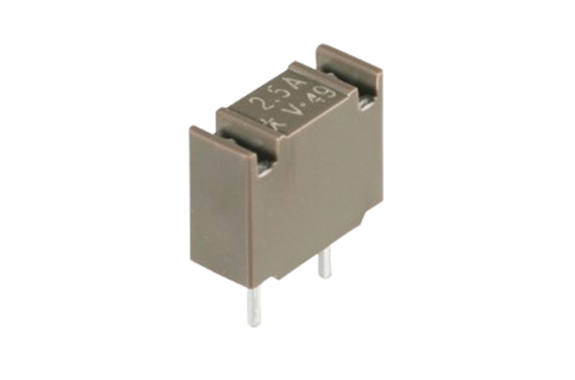

Daito VM Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: VM Fuse
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| VM06*3 | 0.63 A | AC/DC 125 V 50 A | 0.35 Ω | 0.045 A²·s |
| VM08*3 | 0.8 A | 0.23 Ω | 0.1 A²·s | |
| VM10 | 1 A | 0.17 Ω | 0.2 A²·s | |
| VM13 | 1.25 A | 0.12 Ω | 0.41 A²·s | |
| VM16 | 1.6 A | 93 mΩ | 0.7 A²·s | |
| VM20 | 2 A | 65 mΩ | 1.1 A²·s | |
| VM25 | 2.5 A | 47 mΩ | 2.4 A²·s | |
| VM32 | 3.15 A | 35 mΩ | 4.1 A²·s | |
| VM40 | 4 A | 23 mΩ | 9 A²·s | |
| VM50 | 5 A | 17 mΩ | 16 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
*3: VM06 and VM08 are not subject to PSE approval.
| Carrying Capacity | Clearing Time |
|---|---|
| 125% | 200% within 2 minutes 1,000% 1 ms to 10 ms |

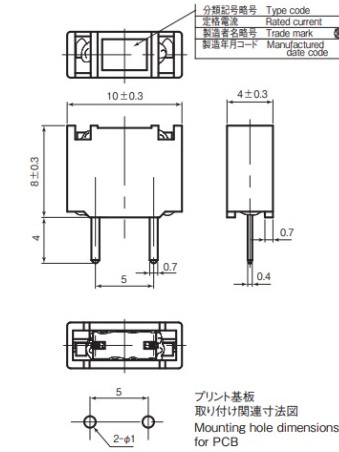

- Dimensions & Weight Size, Net Width
- 10×4×8mm 0.5g
- Color
- Brown
- Package
- 100 pcs/stick
100pcs/stick
- Range of ambient temperature
- -20°C~60°
- Storage temperature
- -40℃～85℃
