Daitoukeiki, Japan
Daitoukeiki C11A type guage C Contact Point Guages( for Outdoors)
Product Made in Japan
Manufacturer: Daitoukeiki
Model: C11A type guage
Features
An indicator pointer contacts with a contact point to operate
an alarm buzzer and alarm lamp.
The liquid contact part can also be manufactured in SUS316.
Specify connecting screws other than the above.(Example:NPT,7/16 flare,etc.)
Guages of dial diameter 75 use bowl-shaped arcylic. For diameter 75, connecting scres 1/2 are not available.
Specifications
| Frame (Outer frame) | Frame (Inner frame) | Connecting part | Bourdon tube |
|---|---|---|---|
| AC7A black coating | AC7A black coating | C3604BD C3771BE SUS316 | C2680TW C5191 Tool steel SUS316 |

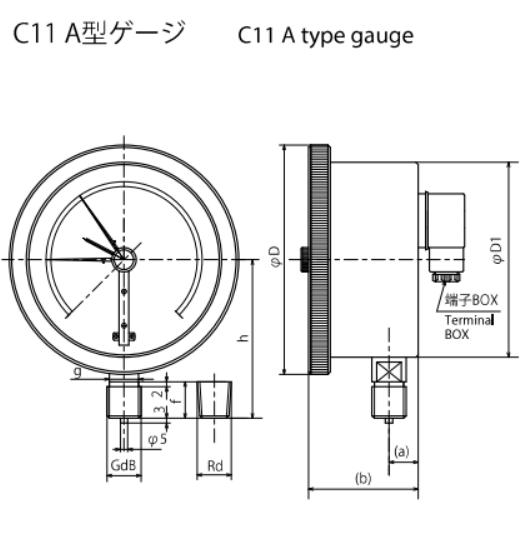

Drawings and Dimensions Table
| Size | d | (a) | (b) | f | g | h | D | D1 |
|---|---|---|---|---|---|---|---|---|
| φ75 | 1/4″ | 14 | 62 | 14 | 14 Double D | 66 | 90 | 78 |
| 3/8″ | 18 | 70 | ||||||
| φ100 | 3/8″ | 14 | 1 contact point 61 | 18 | 14 Double D | 82 | 116 | 103 |
| 1/2″ | 2 contact points 68 | 20 | 19 Double D | 96 |
Kouei is Distributor/Agent of Daitoukeiki.
