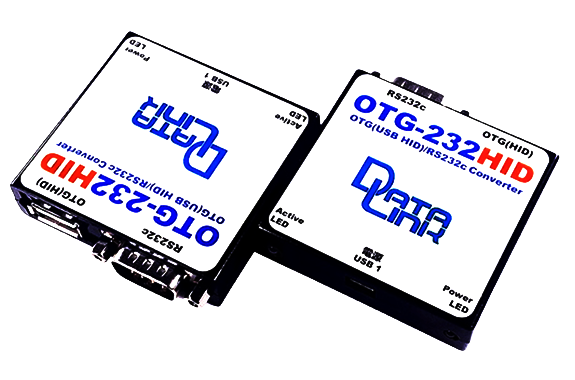

DataLink OTG-232HID USB converter
Manufacturer: DataLink
Model: OTG-232HID
Features
- This OTG-232/HID converts data received from OTG USB (HID) into ASCII code and sends it to RS232C devices (or USB devices).
- As a USB (HID) master, OTG-232/HID is used .
- Compatible with USB1.1 and USB2.0.
- With OTG function, communication parameters can be easily set.
Specifications
◆Outline specifications
| Model | OTG-232HID | |
|---|---|---|
| Function | OTG function | |
| Environmental temperature | 0 to 50°C | |
| Environmental humidity | No condensation | |
| Shape | Width: 55mm Height: 52mm Thickness: 14mm | |
| Weight | 40g | |
| Power supply | 5V is supplied from a USB power supply (user-supplied) connected to the USB-MiNiB, or from the USB of a PC. | |
| Power consumption | During communication: 80mA | |
| USB-MiNiB | (1) Simply supplies power to the OTG-232HID (2) In addition to supplying power, it also has VCOM communication function as a USB device. It has a 10K byte receive buffer. | |
| RS232C communication specifications | DSUB9 pin (male) DTE arrangement RS232C pin arrangement | |
◆Connection configurations

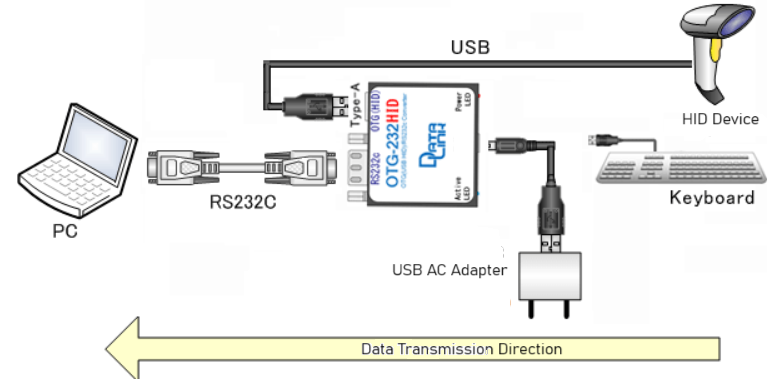

When the output is RS232C, Data from an HID device is imported as RS232 using the OTG function of the OTG-232HID.

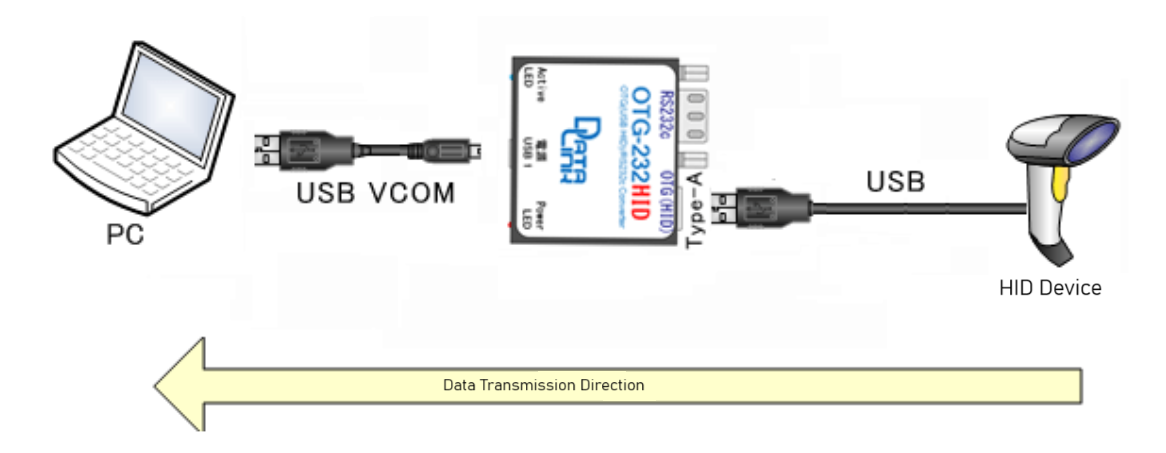

When the output is USB-MiNiB, data from an HID device is imported as RS232 using the OTG function of the OTG-232HID.
In this case, the RS232C port is not used.

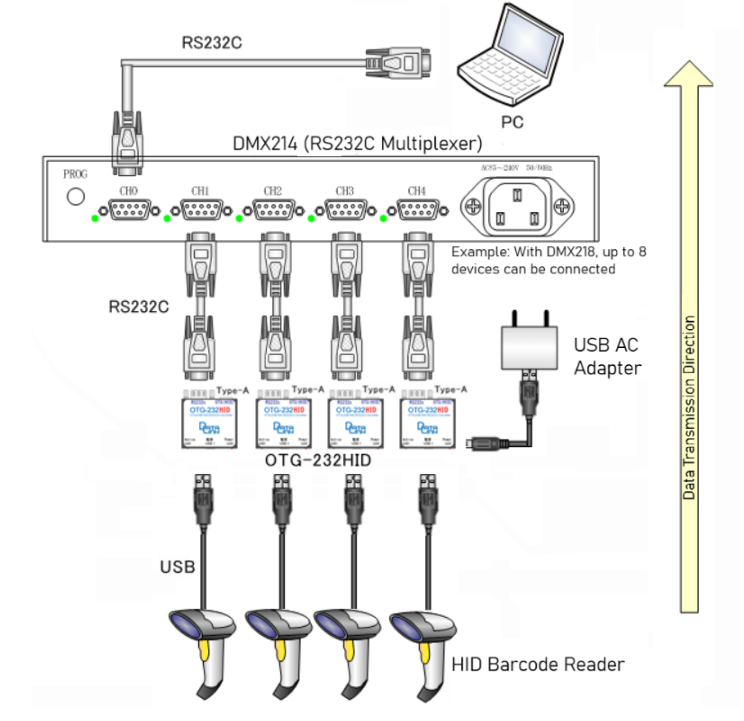

When the DataLink multiplexer [DMX214] or [DMX218] is used to automatically scan data from multiple barcode .
Data can be centrally managed with one controller.
Data from an HID device is imported as RS232 using the OTG function of the OTG-232HID.
