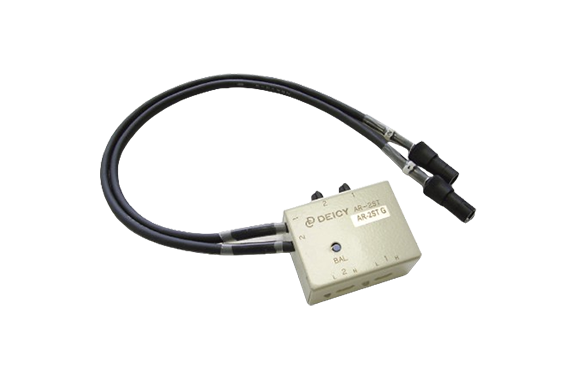

Deicy AR-2STG, AR-2STF 2-channel Compact Dynamic Strain Amplifier
Manufacturer: DEICY Co., Ltd.
Model: AR-2STG / AR-2STF
Features
- This is a matchbox-sized, approximately 90g 2-channel dynamic distortion amplifier unit.
- AR-2STG: 120Ω bridge resistor built-in, 1-gauge method 2-wire compatible type
AR-2STF: 4-gauge method type without bridge resistor - Balance operation by push button, balance status can be determined by LED color lighting.
- A 6-channel type is also available.
Specifications
| Item | Specification |
|---|---|
| Input Impedance | About 1 MΩ |
| Frequency Characteristics | 5 kHz or above -3 dB |
| BV Output | +2 V ± 0.02 V or less |
| Input Range | AR-2STG / AR-2STF ±5000 μST (or ±10000 μST) / ±2000 μST (±5000 μST) switchable via dual switch H side ±5000 μST (or ±10000 μST) / L side ±2000 μST (±5000 μST) AR-2STG: 1-gauge method (120Ω connection) AR-2STF: 4-gauge method connection |
| Rated Output | ±5 V non-symmetrical output voltage (Gain error ±2% or less) |
