Manufacturer: DEICY Co., Ltd.
Model: RP5100 Series

Features

• Angle range: 100°, 130°, 350°
• 3 types of stainless steel shafts
• Heat shrink boot option
• Flange Mount
• bush type shaft bearing
• Protection class IP66

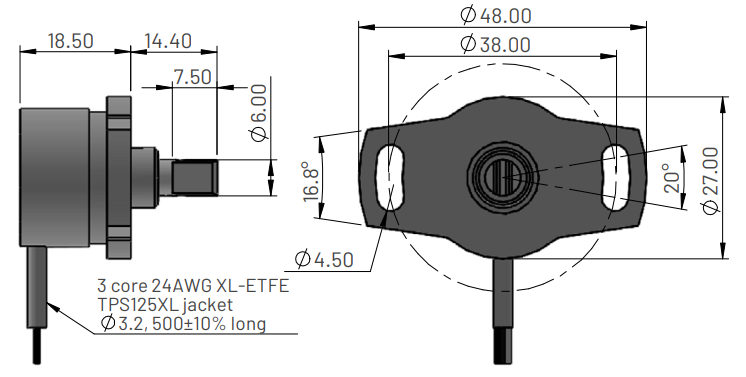

■ Dimensions for RP5110 – Flange mounting – sprung shaft

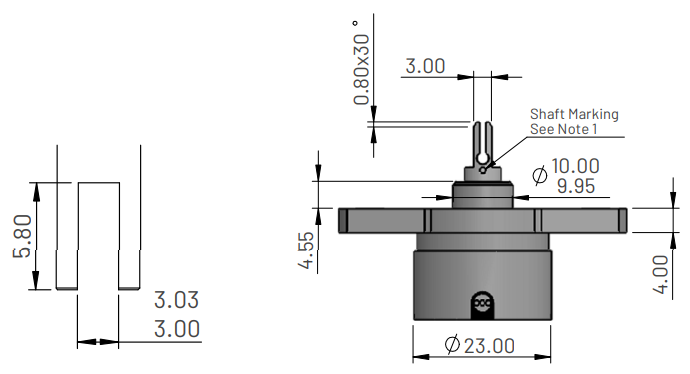

■ Drive shaft detail

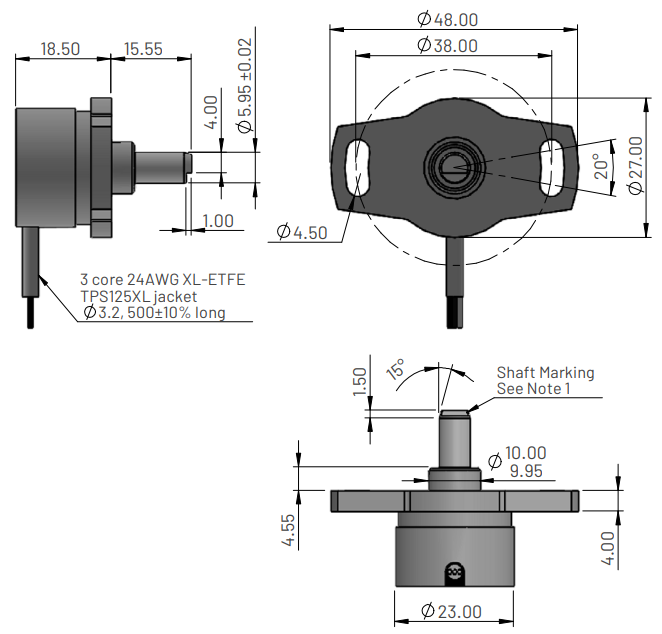

■ Dimensions for RP5120 – Flange mounting – round shaft

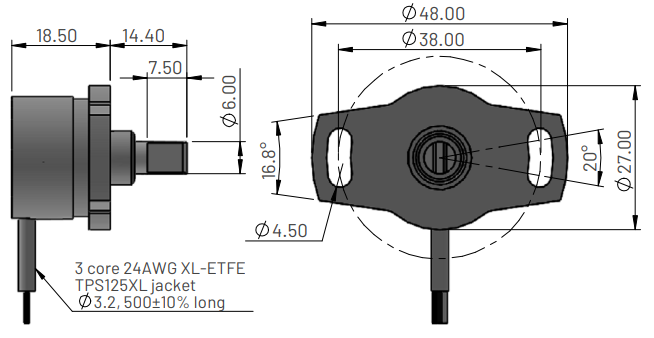

■ Dimensions for RP5130 – Flange mounting – blade shaft

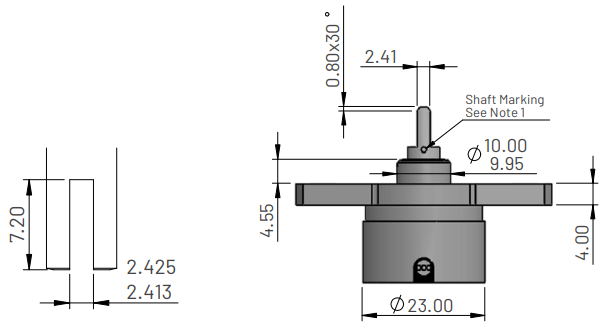

■ Drive shaft detail
