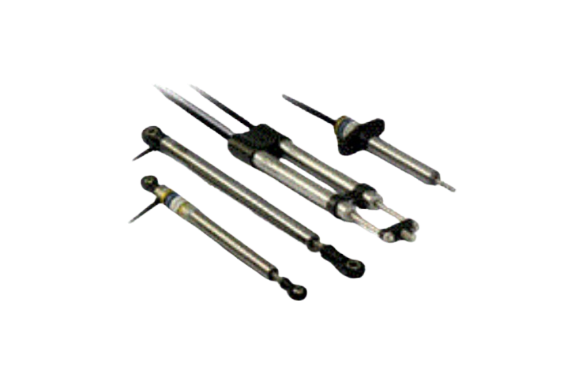

Manufacturer: DEICY Co., Ltd.
Model: XLS0950 Series

Features

• LVDT – A non-contact linear displacement sensor that uses a linear voltage differential transformer.
• It can be equipped with a built-in or external signal conditioner, and operates with three cable wires: power, signal line +, and common.
• It operates on a regulated 5V DC supply voltage and outputs 0.5V DC to 4.5V DC.
• Measurement length 10mm to 60mm
• Extremely compact 9.53mm stainless steel case
• 3mm diameter stainless steel shaft
• Operating temperature range up to 180°C
• Temperature characteristics < ±0.010% FS/℃
• Protection class IP67
