Electronic Magnetic Industry Co.

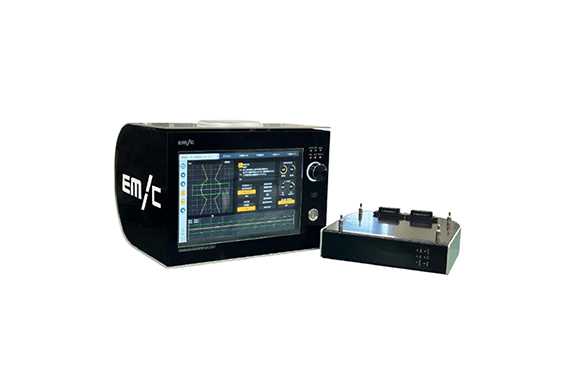

EMIC DET-1000
Manufacturer: Electronic Magnetic Industry Co., Ltd
Model: DET-1000
Specifications
| Model | DET−１０００ |
| Test Frequency | 1〜5000KHz |
| Set sensitivity | 0~100dB |
| Selection Operations | touch panel |
| Waveform Representation | touch panel |
| Waveform saving function | And |
| Timeline waveform display | And |
| Comparator type | X-axis, Y-axis, circular and fan-type can be combined |
| Setting Condition Number of External Calls | 127 |
| Number of Condition Memories | 100 or more (the upper limit varies depending on the free space of the main unit) |
| Storage Devices | USB Memory |
| Power input | AC100~240V 50/60Hz |
| Body Dimensions | W300×D210×H245mm |
| mass | Approx. 6Kg |
