Electronic Magnetic Industry Co.

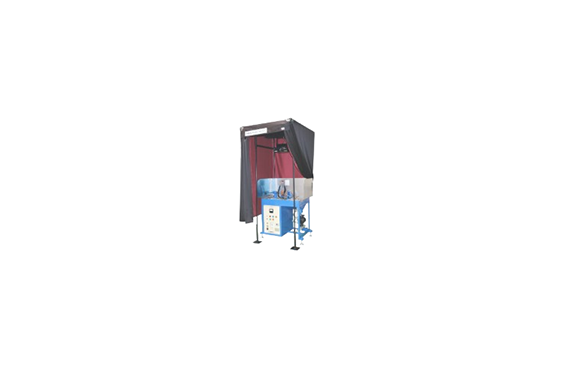

EMIC DM-163 16″ manual magnetic particle detector
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Mode: DM-163
Specifications
| specification | DM-163 | |
| Power input (rated) | Three-phase AC 200V 50/60Hz 30A | |
| Magnetization output | direct current | 2,000A (single-phase half-wave rectifier high) |
| alternating current | 1,500A (wave height) | |
| Current Conditioning | SCR contactless stepless system | |
| Power-on time | 0.5~2 seconds variable/2 seconds energization 30 seconds pause | |
| Load Strips | Φ25mm ×350mm copper rod crimped between the two electrodes | |
| Demagnetization output | AC current attenuation method 1,500A~0 | |
| electrode | Maximum opening | 50~400mmmanualsliding |
| Contact surface and material | 100mm×100mm copper mesh | |
| Body Dimensions (mm) | 830W×600D×820H | |
| Darkroom Unit Dimensions (mm) | 1,010W×1,150D×2,000H | |
| mass | Approx. 130kg | |
