Electronic Magnetic Industry Co.

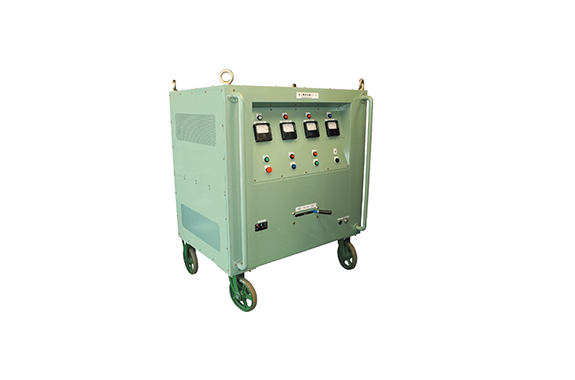

EMIC EZ Three-phase full-wave (IVR) magnetized power supply
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Mode: EZ
Features
- Because it uses IVR (Inductive Voltage Regulator) for the current regulation mechanism, the
AC output waveform is a perfect sine wave. - The DC output adopts a three-phase full-wave rectification system to obtain a small ripple output waveform.It is used in combination with inspection and processing equipment and prod contactors for flaw detection of nuclear, shipbuilding, aircraft parts,
cast and forged steel products, etc.
(Compatible with various standards)
Specifications
| Model | EZ-3 | EZ-3A | EZ-３M | EZ-4M | |
| Power input (rated) | Three-phase AC 200V 50/60Hz 225A | ||||
| Magnetization output | DC | 7,000A (three-phase full-wave rectifier wave high) | 6,000A (three-phase full-wave rectification average) | ||
| Interaction | 5,000A (wave height) | 4,000A (RMS) | |||
| Current Regulation | Contactless stepless | ||||
| Power-up time | DC 0~1 sec/AC Time-free | ||||
| Accountability Cycle | 1 second power-up, 30 seconds pause | ||||
| Load Conditions | 200mm2 magnetized cable 10m short circuit | ||||
| Demagnetization output | AC Current Attenuation 4,000A→0A | DC Switching Damping System: 4,000 A→0A | |||
| Examples of use cases | General use | Nuclear Power & Shipbuilding | aircraft | ||
| Body Dimensions (mm) | 1,300W×900D×1,500H | 1,300W×1,000D×1,600H | |||
| wheel | Movable front wheels, fixed rear wheels | ||||
| mass | Approx. 1,500 kg | Approx. 1,500 kg | Approx. 1,600 kg | Approx. 1,700 kg | |
