Electronic Magnetic Industry Co.

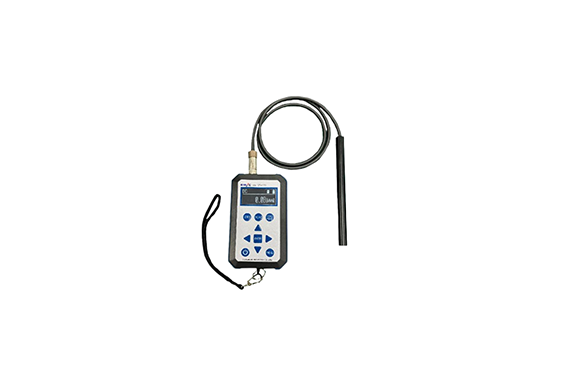

EMIC GMH-201 New Handheld Gausmeter
Manufacturer: Electronic Magnetic Industry Co., Ltd.
Model: GMH-201
Specifications
| name | GMH-201 |
| Measuring range | 1 range ±3000mT |
| Measurement accuracy | DC: ± 2.0% ± 5 digits of reading AC: ±4.0% ±5 digits of reading |
| Number of digits displayed | 6 digits |
| Measurement frequency | DC/AC：20Hz～400Hz（-3dB ） |
| function | Auto-zero (DC only), DC/AC measurement, unit conversion Auto Power OFF (User Optional), Peak Hold Function |
| power | 3 AA batteries (alkaline, nickel-metal hydride compatible) × |
| Data Communication | Virtual COM port (USB typeC), Bluetooth 5.0 (technical qualification, domestic specification) |
| Operating temperature | 5℃～35℃ |
| Dimensions (mm) and mass | 88(W)×145(H)×33(D), 320g (without probe) |
