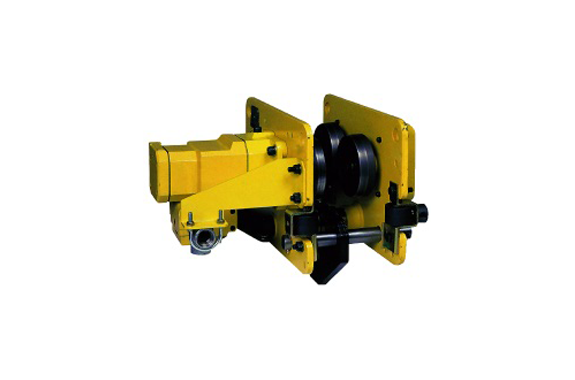

ENDO KOGYO MTH Series Air Motor Trolley
Manufacturer: ENDO KOGYO
Model: MTH Series
Feature
This type of trolley operates using air power, and as a result, it transports suspended loads horizontally with smooth control. Furthermore, you can combine the trolley with an Air Hoist, which allows you to use it efficiently as a crane system. Unlike electric motors, air motors provide a safer alternative, especially in environments where sparks must be avoided.Because of this, you can safely install the trolley in chemical plants or any facility where hazardous materials are present. In fact, ENDO trolleys are perfectly suited for hazardous locations, such as chemical factories, precisely because they run on compressed air—not electricity.
Moreover, the unit features stepless speed control, which enables precise, responsive, and efficient operation in demanding conditions
Specifications
| Model | Rated load (kg) | Air pressure (MPa) (kgf/c㎡) | Traveling speed (m/min) | Air consumption (m³/min) (normal) | Applicable beam width (mm) | Minimum rotation radius (mm) | Air inlet | Mass (kg) |
| MTH-1T-5 | 1,000 | 0.4(4) | 20 | 0.55 | 75 | 3,500 | Rc1/2 | Approx.35 |
| 0.5(5) | 25 | 0.6 | 100 125 | 800 | ||||
| 0.6(6) | 28 | 0.65 | ||||||
| MTH-2T-5 | 2,000 | 0.4(4) | 16 | 1.05 | 125 150 | 1,000 | Rc1/2 | Approx.63 |
| 0.5(5) | 17 | 1.3 | ||||||
| 0.6(6) | 18 | 1.6 | ||||||
| MTH-6.3T | 6,300 | 0.4(4) | 17 | 1.05 | 150 175 190 | 2,500 | Rc3/4 | Approx.127 |
| 0.5(5) | 18 | 1.3 | ||||||
| 0.6(6) | 19 | 1.6 |
Corresponding table-air hoist/ air motor troylley
| Model | EHL-025TS | EHL-049TS | EHL-05TS | EHL-1TW | EHL-1TS | EHL-2TW | EHL-2.8TS |
| MTH-1T-5 | ● | ● | ● | ● | – | – | – |
| MTH-2T-5 | – | – | – | – | ● | ● | △* |
| MTH-6.3T | – | – | – | – | – | – | ● |
*Only the top hook of air hoist can be connected on the trolley.
