EXEN EVUR 10-Series Vibration Motor (6-pole 3-phase 200V)
Products Made In Japan
Manufacturer: EXEN
Model: EVUR 10-Series
A new model of 6-pole vibration motor that can be used in a wide range of applications from vibration feeders to vibration screens.
Features
It is widely used for transportation and sorting equipment by utilizing strong vibration.
Ideal as a drive source for various vibration devices
This motor has a large amplitude and is suitable as a drive source for transportation and sorting equipment.
Designed for water resistant structure
It is possible to use it in an environment where it is exposed to dust or water due to the design of a fully enclosed drip-proof structure with protection class IP66.
Molded stator
By fixing the motor stator to the mold, the risk of wire breakage due to vibration is reduced. EVSI 10-310 – EVSI 10-550
Dimensions, installation, control panel
Specification
| Model | Output （W） |
Voltage （V） |
Input Frequency （Hz） |
Current(A） | Frequency（Hz） | Centrifugal Force （kN） |
Cable Length (m) |
Weight （kg） |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | 50Hz | 60Hz | |||||||
| EVSI 10-310 | 220 | 200 | 50/60 | 1.50 | 1.37 | 15.5 | 18.7 | 3.15 | 2 | 27.0 |
| EVSI 10-550 | 240 | 1.62 | 1.42 | 14.5 | 18.4 | 5.02 | 33.0 | |||
| EVSI 10-1110 | 550 | 3.65 | 3.89 | 14.8 | 17.6 | 11.1 | 56.0 | |||
| EVUR 10-1110 | 4.30 | 3.60 | 14.3 | 18.0 | 64.0 | |||||
| EVUR 10-1400 | 690 | 4.90 | 4.50 | 13.6 | 16.9 | 14.0 | 78.0 | |||
| EVUR 10-1610 | 830 | 5.02 | 4.20 | 15.4 | 18.8 | 16.1 | N/A | 93.0 | ||
| EVUR 10-2610 | 1590 | 8.70 | 7.75 | 16.0 | 19.3 | 25.5 | 130 | |||
| EVUR 10-3810 | 1930 | 13.7 | 10.4 | 15.7 | 37.5 | 188 | ||||
| EVUR 10-4700 | 2600 | 18.8 | 17.0 | 15.5 | 18.6 | 46.1 | 204 | |||
| EVUR 10-5200 | 2890 | 15.8 | 14.8 | 15.7 | 18.7 | 51.1 | 238 | |||
| EVSI 10-6600 | 4150 | 23.0 | 17.5 | 16.2 | 19.5 | 66.7 | 285 | |||
| EVSI 10-10000 | 6300 | 27.0 | 25.5 | 16.6 | 20.0 | 95.1 | 381 | |||
| EVSI 10-11200 | 109 | 405 | ||||||||
| EVSI 10-15000 | 9000 | 400 | 19.0 | 18.1 | 139 | 643 | ||||
| EVSI 10-17500 | 11000 | 24.5 | 23.3 | 170 | 705 | |||||
*Over 750 W vibration motor does not include a cable.

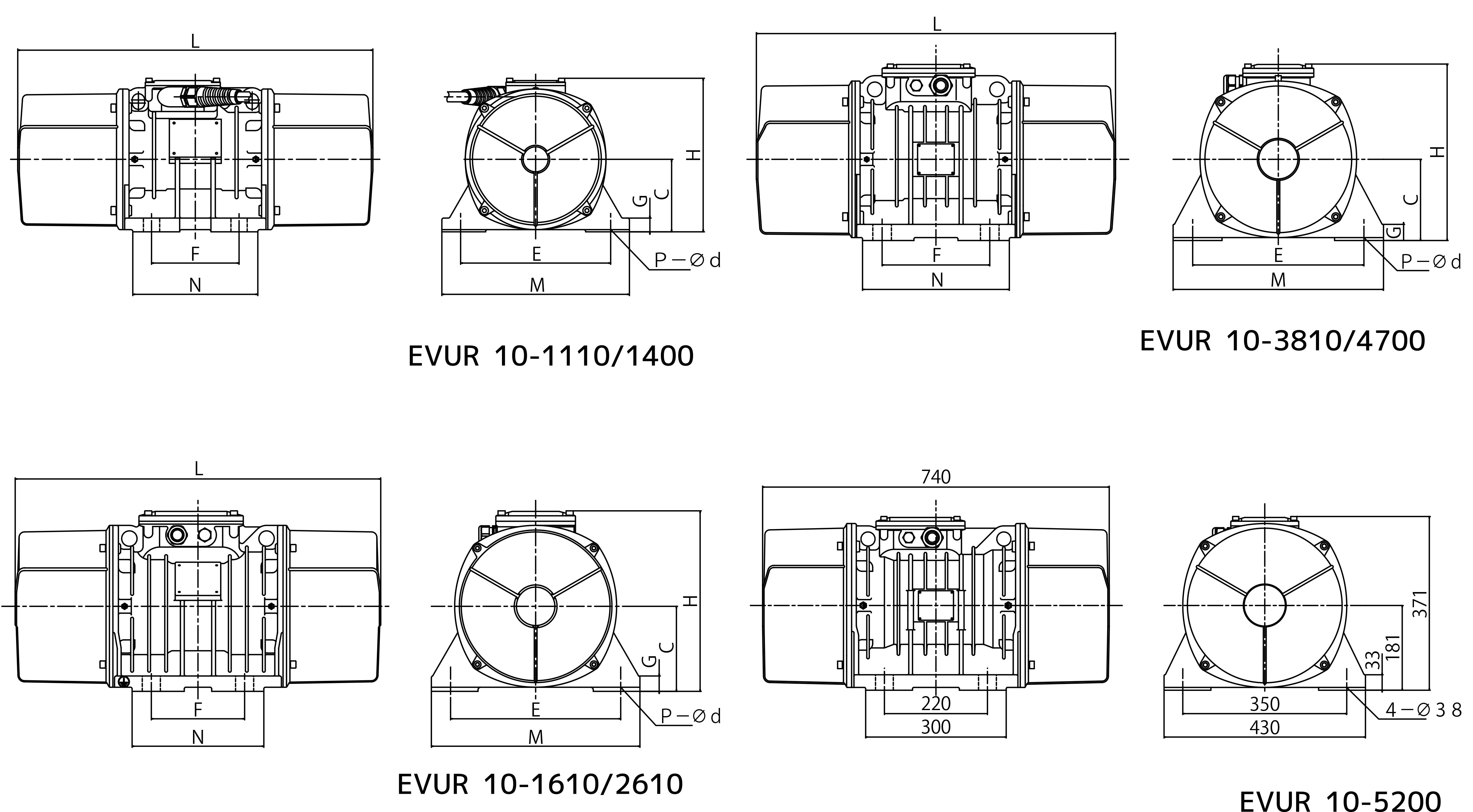

Product dimensional table
| Model | E | F | G | C | H | L | N | M | P | φd |
|---|---|---|---|---|---|---|---|---|---|---|
| EVUR 10-1110 | 240 | 140 | 22 | 116 | 246 | 568 | 200 | 300 | 4 | 26 |
| EVUR10-1400 | ||||||||||
| EVUR 10-1610 | 260 | 150 | 132.5 | 271 | 617 | 210 | 320 | |||
| EVUR 10-2610 | 310 | 170 | 28 | 155 | 329 | 666 | 240 | 380 | 33 | |
| EVUR 10-3810 | 350 | 220 | 33 | 166 | 361 | 734 | 300 | 430 | 38 | |
| EVUR 10-4700 | 796 |
