Freebear

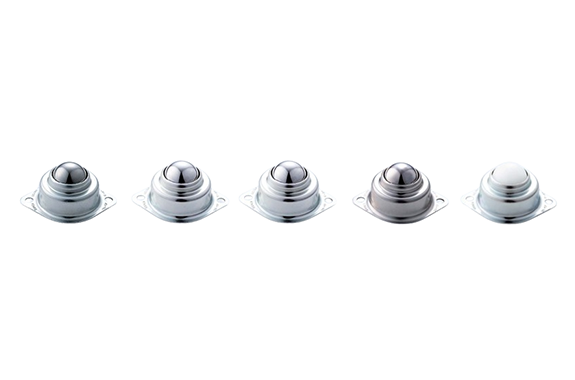

Freebear Y-Type
Manufacturer: Freebear Corporation Ltd.
Model: Y-Type
Features
- A synonym for “Ball Transfer”.
High quality products with wide application.
Stainless steel ball seat further improves the performance.
Specifications
| Model | Allowable load | Max. load | Main ball | Small ball | Body (cover) | Ball seat | Weight |
|---|---|---|---|---|---|---|---|
| C-8Y | 30kg | 60kg | Steel | Steel | Steel | SUS | 138g |
| CS-8Y | 30kg | 60kg | SUS | SUS | Steel | SUS | 138g |
| C-8YH | 80kg | 160kg | Steel | Steel | Steel | Steel ※The cutting-machined ball seat is used | 212g |
| S-8Y | 30kg | 60kg | SUS | SUS | SUS | SUS | 136g |
| P-8Y | 5kg | – | Nylon | SUS | Steel | SUS | 79g |
※The weight of single conveyance object shall not exceed 1000 kg.
※Product specifications are subject to change without prior notice. Please contact us for details.
※For materials not contained herein, please contact us.
※The main ball of the stainless steel products contained herein is made of SUS440C.Please consult us for rust prevention purposes.
