FUJI DIE
Fuji Die Floating Die And Plug FB Type
Manufacturer: Fuji Die Co., Ltd.
Model: FB Type

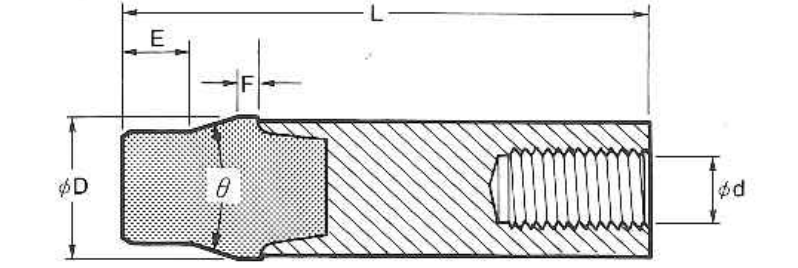

Specifications and Dimensions
| Model No. | D (mm) | E | F | L (mm) | d (inch) |
|---|---|---|---|---|---|
| FB 7 | 5 ~ 7 | 5 | 2.5 | 55 | 1/4 |
| FB 9 | 7 ~ 9 | 5 | 2.5 | 55 | 1/4 |
| FB 11 | 9 ~ 11 | 5 | 3 | 65 | 1/4 |
| FB 13 | 11 ~ 13 | 6 | 3 | 75 | 5/16 |
| FB 15 | 13 ~ 15 | 7 | 3 | 75 | 5/16 |
| FB 17 | 15 ~ 17 | 10 | 3 | 85 | 3/8 |
| FB 19 | 17 ~ 19 | 10 | 3.5 | 85 | 3/8 |
| FB 22 | 19 ~ 22 | 11 | 3.5 | 85 | 1/2 |
| FB 25 | 22 ~ 25 | 12 | 4 | 95 | 1/2 |
