FUJI DIE

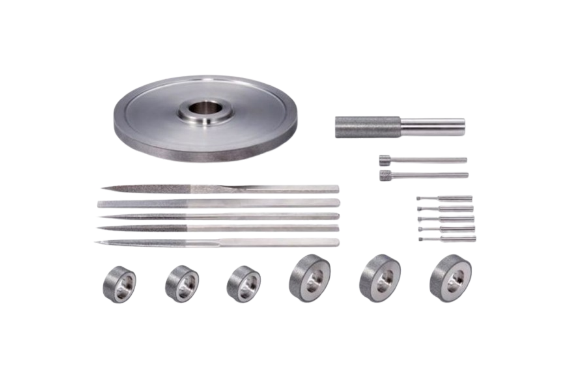

Fuji Die PS2 Type Electroplated Grinding Tool
Manufacturer: Fuji Die Co., Ltd.
Model: PS2 Type
Specifications And Dimensions (Unit : mm)
| Model No. | D | Y | L1 | L2 | T |
|---|---|---|---|---|---|
| PS2-05 | 0.5 | 3 | 50 | 8 | 3 |
| PS2-07 | 0.7 | 3 | 50 | 10 | 4 |
| PS2-10 | 1.0 | 3 | 50 | 15 | 5 |
| PS2-15 | 1.5 | 3 | 50 | 15 | 5 |
| PS2-20 | 2.0 | 3 | 50 | 20 | 10 |
| PS2-30 | 3.0 | 3 | 50 | 18 | 10 |
| PS2-40 | 4.0 | 4 | 50 | 25 | 10 |
| PS2-60 | 6.0 | 6 | 80 | 35 | 10 |
| PS2-30S | 3.0 | 6 | 60 | 14 | 7 |
| PS2-40S | 4.0 | 6 | 60 | 16 | 8 |
| PS2-50S | 5.0 | 6 | 60 | 18 | 9 |
| PS2-60S | 6.0 | 6 | 60 | 20 | 10 |
| PS2-20H | 2.0 | 6 | 70 | 30 | 8 |
| PS2-30H | 3.0 | 6 | 70 | 30 | 8 |
| PS2-40H | 4.0 | 6 | 70 | 30 | 10 |
| PS2-50H | 5.0 | 6 | 70 | 30 | 10 |
